Black Coating Color Outdoor Fiber Cable , High Strength Outdoor Armored Fiber Optic Cable

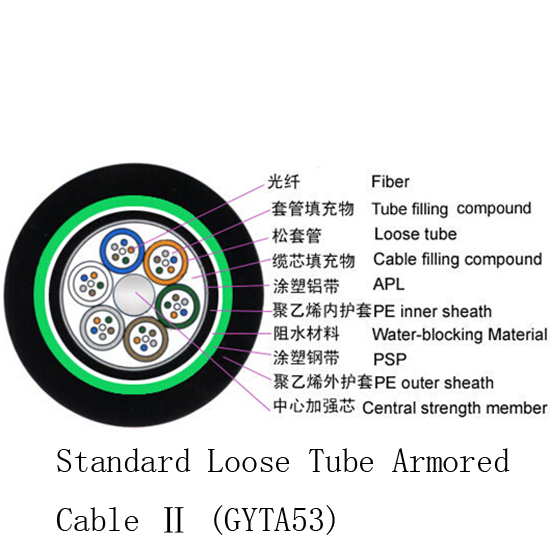

Standard Loose Tube Armored Cable Ⅱ GYTA53 Outdoor Fiber Cable

Product details

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

PSP enhancing moisture-proof

Water-blocking material

Standards: IEC 60794-1

Technical Parameters.

Note:

Suffix X denotes fiber type.

The nominal value of the PE outer sheath thickness is 1.8mm. The nominal value of the PE inner sheath thickness is 0.8mm.

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
