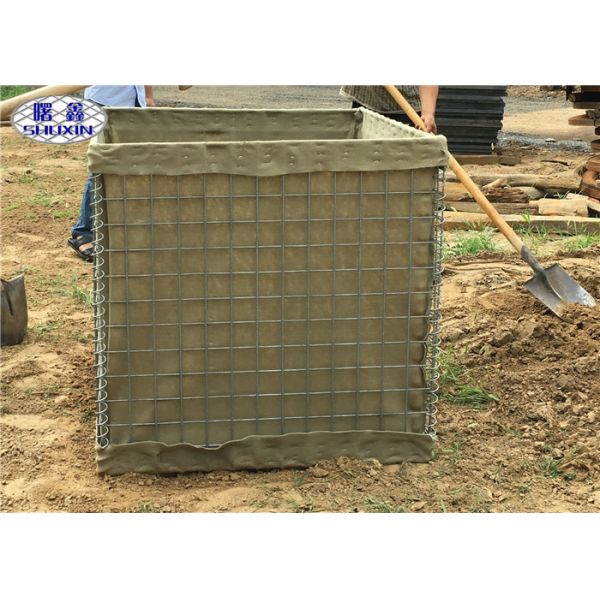

Galvanized Defensive Bastion Wall , Welded Gabion Bastion Blast Wall

Galvanized Durable Defensive Bastion Barriers Wall For Effective Protection in Afghansitan

Military Defensive Bastion Barriers Wall is manufactured from low carbon steel wire with high tensile strength,it is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing .It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life.

Brief Introduction for Military Gabion Box Fortress:

Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire

Service Life: 15-20 years

Wire diameter: 3.0mm- 6.0mm

Aperture: 3" (76.2mm × 76.2mm ) Standard

Color of geotextile: Grey and Military, Beige, Sand Color and so on.

Weight of Geotextile: 250 g/m2 or 300 g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized or galvanized after welded

The Standard Technical Specifications from MIL 1 to MIL 19

The Application for Defensive Barrier Bastion Wall:

Flood Control

1. Flood Prevention Barrier

From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

Military Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

Wiht sand and earth in it, Welded Gabion Box can as a retaining Wall to against the flood.

4. Protection Engineering of Seaside Area

Military Defensive Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control

The Advantages of Welded Gabion Basket Wall:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.

4. Fast and Simple Operation

A security wall using earth-filled barrier box can be filled by two persons and a standard front-end loader in just 20 minutes, the equivalent sized wall of 1,500 sandbags will take 10 persons up to 7 hours to fill and build.
