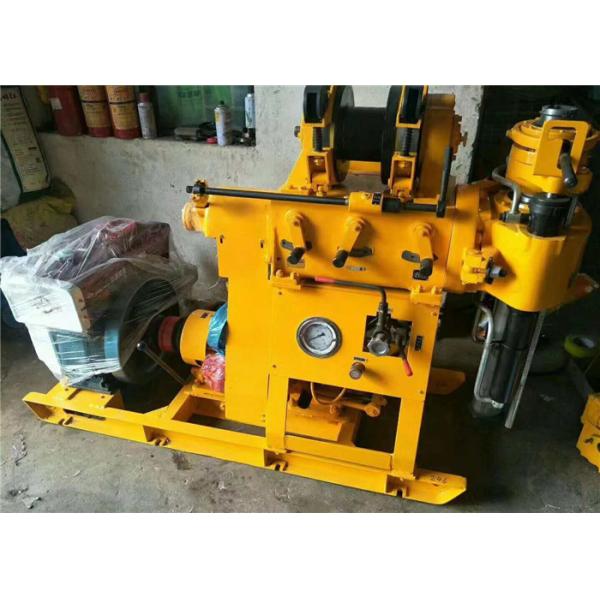

Efficient Compact 200m Water Well Drilling Rig Machine ST200 sell to Singpore

parameter of 200m Water Well Drilling Rig Machine
| ST-200 Type | |||
| Drill | Swivel Head | ||
Drilling depth | Max.200m | Spindle speed | (4-speed) 115 230 505 1010r/m |
Hole diameter | Max.300m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.2Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 2000r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 20KN | Model(diesel engine | ZS1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 16.2KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1730*860*1360mm | ||
WE OFFER YOU:
1. FACTORY DIRECT PRICE.
2. NICE QUALITY.
3. QUICK SHIPPING WITHIN 7 DAYS.
4. MOQ , 1 SET OK . SMALL ORDER WELCOME.
5. ONLINE PAYMENT.
6. SUPPORT 7 DAYS REFUND.
7. AFTER SALES SERVICES 24/7 ON LINE
Application of water well drilling Rig
1. Water well drilling
2. Geological Exploration and Prospecting,
3. Geothermal wells, Blast-hole, Irrigation projects, etc.

|
