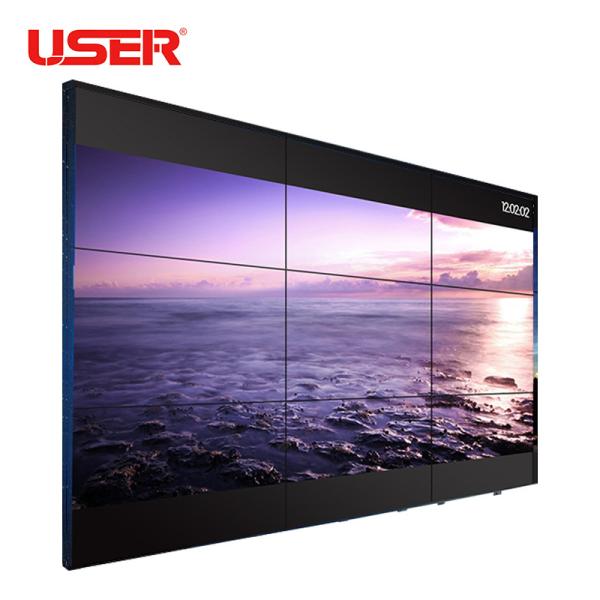

Big Size Smart DID Video Wall Screens Indoor Slim Original 1080P

55 inch wall mounted DID 16:9 narrow bezel lcd video wall display

Product Description

Product Description forIndoor 55 inch Lcd Panel Video Wall

1. Ultra-narrow border design of the current width of only 1.8mm at present

2. Full-screen high definition display, up to 1080P

3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

4. DID using LG proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

5. Long life, stable operation, no burns, injuries, low maintenance costs

A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

6. Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

LCD Video Wall Screen (LG DID)
Specifications
Model No.	US-PJ5504-X1
Panel Size	55'' LG DID LCD Screen(super narrow bezel 1.8mm with LED Backlight)
Aspect Ratio	16:9
Max Resolution Support	1920x1080
Color	8Bit,16.7M
Brightness (nits)	500cd/m2
Contrast	4000:1
Visual Angle (H/V)	178°
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
Input and output
DVI	1
HD	1
D-15 RGB Input(VGA)	1
RJ45	4
Composite Video Input/(AV)	1(1xBNC)
Composite Video Output	1(1xBNC)
Split Screen	Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply	AC100V~240V
Maximum Power Consumption	230W
Standby Power Consumption	<=3W
Temperature
Working Temperature	0°C~50°C
Working Humidity	20%-80%
Dimension	1044.9x590.0x118.5mm
Weight	30kg

Video Wall Controller(Built-in each Screen)
Model No.	US-P819W
Input	CVBS	1*BNC port, support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
	VGA	1*D15 port, support SVGA/XGA/WXGA
	HD	5*BNC ports, support SVGA/XGA/WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	307×283×55(mm)
Weight	About 3.5KG

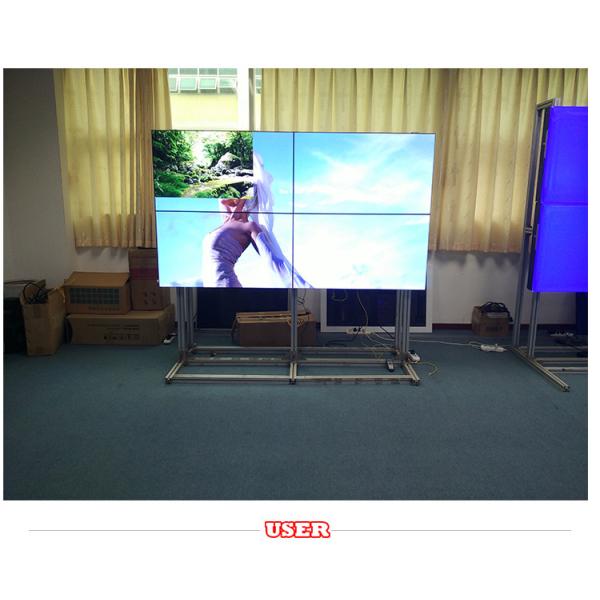

Main products 46,47,55 narrow bezel LCD video wall,lcd advertising screen (2)

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen USER Special Display Technologies Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	LCD Video Wall
Place of Origin:	Place of Origin
Brand Name:	Brand Name
Model Number:	Model Number
Price:	Negotiation
MOQ:	1 Unit/Units
Type:	TFT
Size:	55 inch did lcd panel
brightness:	500cd/m2
Contrast ratio:	4000:1
Bezel:	1.8mm
Max Resolution Support:	1920*1080
color:	8Bit,16.7M
Composite Video Input/(AV):	3(3xBNC)
Composite Video Output:	2(2xBNC)
AUDIO INPUT:	1
YUV/YPbPR:	1(3xBNC)
Packaging Details:	Carton Box within PE Foam, wooden box
Delivery Time:	3-8 working days after delivery
Payment Terms:	T/T,L/C,Western Union,Paypal and MoneyGram
Supply Ability:	1000 Piece/Pieces per Week
