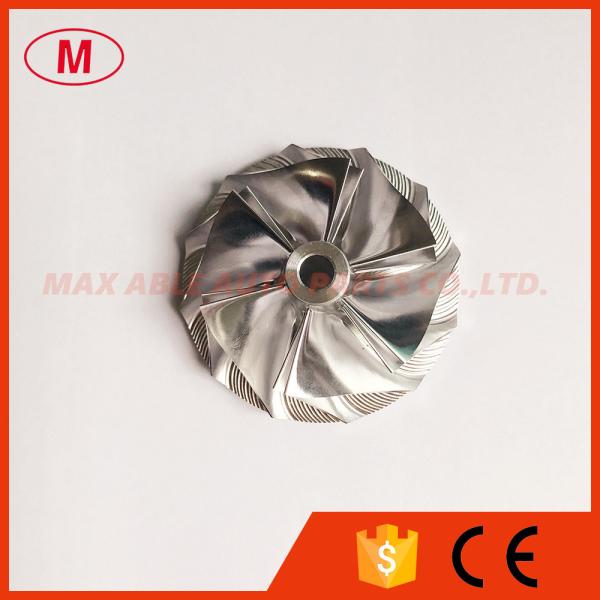

TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco

1. MODEL:TA31 Forward

2. TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco 444836-0001/452064-0001/465103-0002/465133-0004/465189-0001/465286-0004/465358-0003/465404-0003/465503-0001/465562-0004/465564-0006/465576-0004/465593-0001

3.Size:

Nose diameter:12.16mm

inducer:46.41mm

Exducer:60.25mm

Tip height:5.89mm

Superback:3.81mm

Overall height:31.00mm

Bore size:6.35mm

Trailing angle:60

Cutback:1.0

Sp height angle:-4.50

Blade height:20.70mm

Splitter height:13.95mm

6+6 blades

Forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

Aplication:

444836-0001

452064-0001

465103-0002

465133-0004

465189-0001

465286-0004

465358-0003

465404-0003

465503-0001

465562-0004

465564-0006

465576-0004

465593-0001

4.High quality and competitive price.

5.Any questions please send email to me,we have many size.

All the compressor wheel have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
