Less Tare Weight Aluminum Fuel Oil Tank Trailer , Fuel Tanker Semi Trailer

Less Tare Weight Aluminum Tank Trailer

Description:

• Key Application
Aluminum tank trailer can complete road transport of bulk fuel and is applied in minor oils or rail-free regions. Unibody structure is often used in the trailer. The tank is the container for loading oil.

Advantages:

• Surge Heads
Surge heads are installed in the tank to lessen the oscillation of the oil during the driving. The heads are also galvanized and can divide the tank shell into several compartments.

• Safety Valves
Safety valves are installed to prevent the rupture of the tank caused by the increased pressure subject to the harsh rays of the sun.

• Fire Prevention
The earth line against static electricity and dry powder extinguishers are set in the trailer. Noble gases are added if the flash point of the oil is very low.

Specifications:

Main Parameters
Overall Dimension	11800×2550×3750 (mm)
Total Mass	40000(Kg)
Curb Weight	6800 (Kg)
Rated Load	33200 (Kg)
Fifth-wheel Load	16000(Kg)
Tank Body
Shape	Ellipse
Total Volume(m3)	40000L
Tanker Body Material	6mm aluminium alloy
End Plate	7mm aluminium alloy
Manhole Cover	aluminium alloy API manhole cover; Φ500mm; breather valve
Bottom Valve	Pneumatic type
Discharging Valve	Φ100mm discharging valves
Discharging Pipe	4” rubber hose, 2pcs, 6m long
Vapor collecting system	Standard
Anti-overflow device	Standard
Chassis
Main Beams	Special design carbon steel I beam; Connected by bolts and nuts with tanker body; Removable from tanker for separate transportation
Approach/Departure Angle	-/16(°)
Axle	BPW 13 Ton x3; -/24000
Landing Gear	JOST brand Two-speed, manual operating, heavy duty
King Pin	JOST brand 2” bolt-in
Suspension	Non-liftable air suspension
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Rear Track	1840/1840/1840
Tire	12R22.5 12PR,11.00R20 12PR, 12 pieces
Wheelbase(mm)	5600+1320+1320
Front/Rear Suspension(mm)	-/1760
Painting	Sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	Tool box

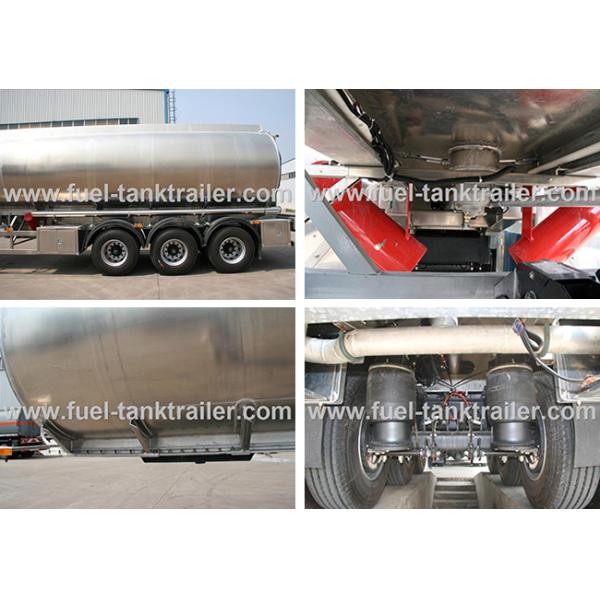

Configuration

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
