| Brand Name: | SKYLINE |
| Model Number: | SL-TL09 |
| Certification: | calibration certificate |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negoitable |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| Delivery Time: | 35 working days |
| Packaging Details: | Plywood case |
| SKYLINE: | Luggage Drop Hammer Impact Tester |
| Dart diameter: | 100±2 mm |
| Radius of dart head: | 50±2 mm |
| Drop height: | 700±10 mm |
| Proof pressure: | 3~5 kg/cm2(not provided ) |
| Power supply: | 1, AC220V 1A (or user-dfined ) |
| Company Info. |
| SKYLINE INSTRUMENTS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

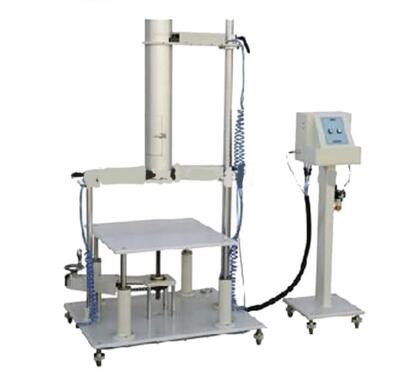

Luggage Drop Hammer Impact Tester
Use
This machine, which is designed according to QB/T2918-2007, is applicable to the impact test of various plastic luggages.
Specification
| Dart diameter | 100±2 mm |
| Radius of dart head | 50±2 mm |
| Dart release device | Pneumatic device |
| Drop height | 700±10 mm |
| Dart weight | 2000±10g, 3000±10g, 4000±10g, 5000±10g |
| Proof pressure | 3~5 kg/cm2(not provided ) |
| Dimensions(approx.) | (W×D×H) 88 × 72 × 163 cm |
| Weight(approx.) | 208 kg(Excluding control box) |
| Power supply | 1, AC220V 1A (or user-dfined ) |
|
