| Categories | DTH Drilling Tools |
|---|---|
| Brand Name: | MIROC |
| Model Number: | DTH Drill Pipe |
| Place of Origin: | Shangdong,China |
| MOQ: | 5 Pieces |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Delivery Time: | 10-22days after receiving payment and order confirmation |
| Packaging Details: | Carton Box or Wooden Box |
| Type: | DTH Drill Pipe |
| Processing Type: | Forging |
| Thread: | API REG |
| Use: | Tunneling, Mining,Quarrying |
| Length: | 3050mm,3660mm |
| Diameter: | 89mm |
| Company Info. |
| KSQ Technologies (Beijing) Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
| Product Name | DTH Drill Pipe |
| Thread | API Reg |
| Diameter | 3 inch |
| Length | 6m |
| Thickness | 6mm |
| Order Information | Thread + Length + Diameter+Thickness |
| MOQ | 1 Pieces |
| Color | Black or based on customer requirements. |

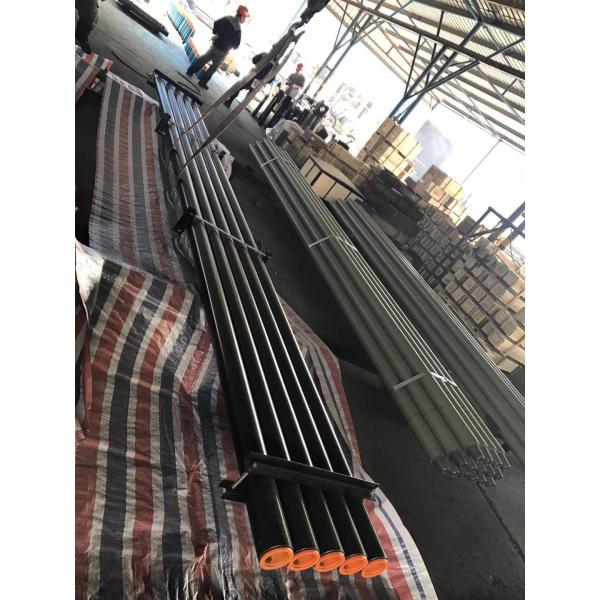

DTH drill rods (also called as drill tubes or drill pipes) are the mechanism to transmit impact force and rotation torque to DTH hammers and bits, as well as offer pass for the air flow.
In principle, the lighter the rod is, the better it is for the drilling operation. So a thinner one is always preferable than a thicker one if other parameters were the same. While in the mean time, the yield strength and the tensile strength must also be taken into accounts, which means relatively rod wall thickness would be needed to obtain enough strength. Of course, once the thickness is rigidly requested as thin as possible to minimize the drill string weight, there is also another method to get optimum drill tubes that using better grade steels.
specification
DTH Drill Rods:
| Diameter | Length | Connection Thread | Wall Thickness | |||
| mm | inch | mm | Foot | mm | inch | |
| 60 | 2 3/8 | 1,000~4,500 | 3 3/8 ~ 14 3/4 | T42×10×2 | 5~8 | 13/64~5/16 |
| 76 | 3 | 1,000~4,500 | 3 3/8 ~ 14 3/4 | 2 3/8” API REG | 5~8 | 13/64~5/16 |
| 89 | 3 1/2 | 1,000~7,620 | 3 3/8 ~ 25 | 2 3/8” API REG/IF | 5~12 | 13/64~15/32 |
| 102 | 4 | 1,000~9140 | 3 3/8 ~ 30 | 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 108 | 4 1/4 | 1,000~9140 | 3 3/8 ~ 30 | 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 114 | 4 1/2 | 1,000~10,670 | 3 3/8 ~ 35 | 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 127 | 5 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 8~20 | 5/16~25/32 |
| 133 | 5 1/4 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 8~20 | 5/16~25/32 |
| 140 | 5 1/2 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 10~22 | 25/64~7/8 |
| 146 | 5 3/4 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 10~22 | 25/64~7/8 |
| 152 | 6 | 1,000~10,670 | 3 3/8 ~ 35 | 4 1/2” API REG | 10~22 | 25/64~7/8 |
Sub Adapters:
| Type | Diameter | Length | Connection Thread | ||
| mm | inch | mm | inch | API REG/IF | |
| Pin to Box | 59~146 | 2 3/8 ~ 5 3/4 | 120~235 | 4 23/32 ~ 9 1/4 | 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2” |
| Pin to Pin | 90~115 | 3 1/2 ~ 4 1/2 | 70~97 | 2 3/4 ~ 3 5/8 | 2 3/8” , 2 7/8”, 3 1/2” |
| Box to Box | 77~205 | 3 ~ 8 1/8 | 200~270 | 7 7/8 ~ 10 5/8 | 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”, 6 5/8” |
Order Information
DTH Drill Rods:
Length + Diameter + Connection Thread + Wall Thickness
Sub Adapters:
Type + Connection Thread + Length + Diameter
|
