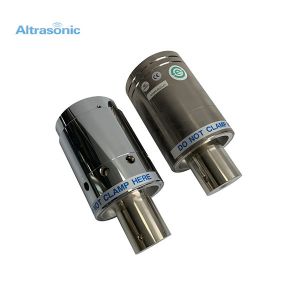

Replacement Branson CJ20 Ultrasonic Welding Transducer 20khz With Protect Housing

Replacement Branson CJ20 Ultrasonic Welding Transducer 20khz With Protect Housing

Specifications:

Description:

An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.

Applications:

Ultrasonic welding converts a 50/60 Hz current into 15, 20, 30 or 40 KHz of electrical energy through an ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical motion of the same frequency, and then the mechanical motion is transmitted to the welding head through a set of horn devices that can change the amplitude. The horn transfers the received vibrational energy to the joint of the workpiece to be welded, in which the vibrational energy is converted into thermal energy by friction to melt the plastic. Ultrasound can be used not only to weld hard thermoplastics, but also to fabrics and films.

Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantages:

1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Detailed Images:

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
