| Categories | Alumina Ceramic Parts |
|---|---|
| Brand Name: | Mingrui |
| Model Number: | XF-1345 |
| Certification: | ISO9001-2015, |
| Place of Origin: | China |
| MOQ: | 1 pieces |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 10000 pieces month |
| Delivery Time: | 15-25 working days after the order confirmed |
| Packaging Details: | intertional carton box |
| Name: | Corundum Crucible |
| Material: | high purity alumina ceramic |
| Type: | ceramic crucible type |
| Width: | 50mm |
| Height: | 150mm |
| Usage: | lab for chemical |
| Capacity: | 270ml |
| Size: | customized by customer |
| max temperature: | 2000 ℃ |
| Shape: | cylinderical |

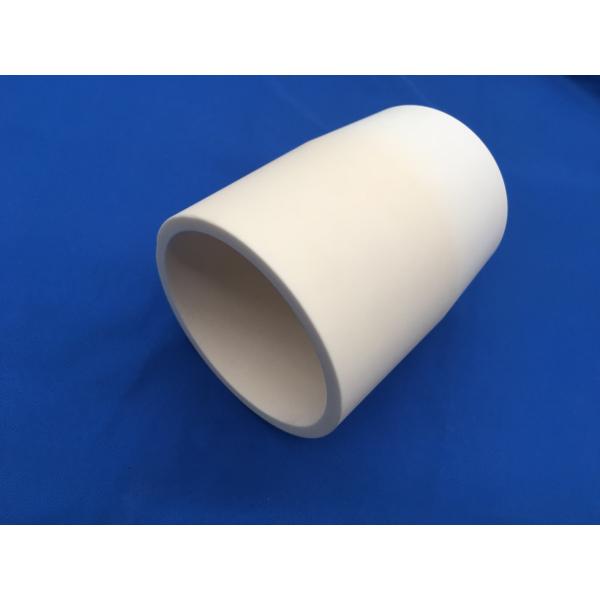

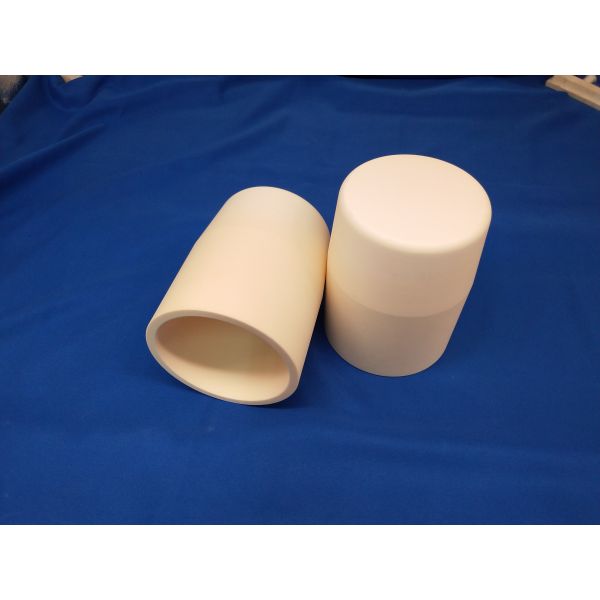

Anti - Corrosion Resistance Corundum Crucible Alumina Ceramic Crucible
1. Use temperatures up to 2000°C
2. High density High purity
3. Anti corrosion
4. High temperature Resistance
5. Chemical inertness
6. Resistance to molten metals
7. Good Wear resistance
8. High fracture toughness
9. Shapes and size can be produced according to your requirements
Product Name | Anti - Corrosion Resistance Corundum Crucible Alumina Ceramic Crucible |
Material | Alumina ceramic |
OD | 0.3mm - 200 mm |
| height | mm - 500mm |
Surface Roughness | Smooth |
Torlerance | according to customer |
Lead time | 10 - 30days |
Shipping | (DHL/UPS/TNT/ FedEx) |
Properties Sheet of zirconia and alumina :
| Properties | Unit | Alumina | Zirconia | ||||
| 96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP | ||
| Colour | - | White | White | Ivory | Ivory | Translucent | white/black |
| Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 |
| Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 |
| Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 |
| Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 |
| KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 |
| Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 |
| Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 |
| Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 |
| Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 |
| Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 |
| Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 |
| Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 |
| Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
| (RT) | |||||||
Packaging & Delivery
| Packaging Details: | 1. Carton with Bubble bag or foam. 2. Wooden carton 3. As per customer's requirements. |
| Delivery Details: | 1. 3-25 days for sample 2. 25-40 days for mass products. |
| Shipment Terms: | 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc. 2. Large order: By sea or By air |
1. High heat resistance : Alumina ceramic has excellent thermal
stability,which means that it is widely used in areas where
resistance to high temperatures is essential.
2. Good wear resistance : Alumina ceramic is the material of choice
for alumina wear parts.
3. High corrosion resistance : It is insoluble in water and only
slightly soluble in strong acid and alkaline solutions. Good
chemical stability of alumina leads to high corrosion resistance.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
