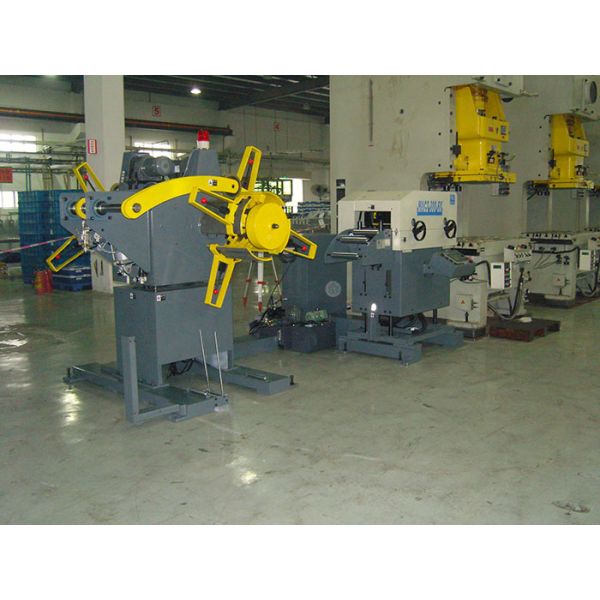

Disc Horizontal Decoiler Straightener Feeder Machine Steel Coil Strip Stamping

Steel coil strip stamping, disc horizontal feeder, steel plate straightening machine

The disc horizontal feeder comprises a flat disc, an electric control panel, a tracker, a swing rod and a support wheel mounted on the swing rod, wherein the coil material can be overlapped and placed on the flat disc, the flat disc is a circular shape, A rotating table with a positioning rod installed in the middle.

When in use, the steel coil strip is placed horizontally on the table top, and the positioning rod is inserted into the center of the strip so that when the coil runs with the flat disc, the entire coil does not deviate from the exit surface.

When the disc horizontal feeder is in use, the coiled steel strip is placed horizontally on the flat disc, and the end of the coiled web is conveyed through the pallet to the subsequent processing machine.

During processing, the flat disk is continuously running to release the strip on the coil and to bring the strip underneath the subsequent gauge.

The working principle is as follows: when the speed of the belt conveyor is slowed down, the tension of the belt is increased. Under the traction force formed by the tension, the belt will drive the pallet wheel to move along the horizontal guide shaft and the horizontal rod, that is, away from One end of the processing machine moves to the proximal end.

During the movement, the bearing for lifting the tilt will also move at the same time. Since the bearing lifts the diagonal rod, the tilting rod will sink under the self-weight due to the bearing running toward the high end of the tilting rod, thus causing the sector tooth to deflect. , thus triggering the governor. The governor will output a signal to the inverter of the flat panel to increase the running speed.

Conversely, if the belt is transported too fast and has a large surplus, its own tension is small, which will cause the pallet wheel to return, thereby triggering the governor and slowing down the flat disc.

The disc horizontal feeder controls the running speed of the flat disc by the depth of contact between the tracker and the eccentric wheel, so that the surplus of the belt is maintained at an appropriate level, and the tension of the belt does not change excessively. Thinner strips have an adverse effect.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
