| Categories | Textile Bearing |
|---|---|
| Brand Name: | VCD |
| Model Number: | 6203 2RS//6204 2RS//6205 2RS |
| Certification: | ISO9001:2000 |
| Place of Origin: | Ningbo,China |
| MOQ: | 5000 pcs |
| Supply Ability: | 100000 pcs per month |
| Delivery Time: | 30 days according to purchasing quantity |
| Packaging Details: | Industrial plastic tube packing |
| Steel Material: | Gcr15 Chrome Steels |
| Rubber Seals Materials: | NBR/ACM/FKM+SPCC |
| Cages: | Steel and Plastic |
| Balls: | G10 and G5 class |
| Quality class: | P6 and Z3V3 class |
| standard: | ISO9001:2000 |
Description

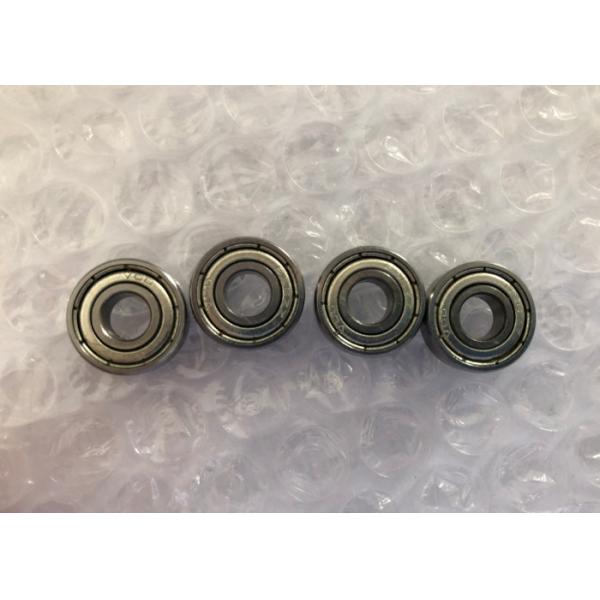

Deep groove ball bearing is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of retainers. Deep groove ball bearing has a single row and double row two types, and also has sealed bearing and open bearing, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simple prevent dust from entering the bearing raceway. Oil proof type contact tyTextile Machine Engine Thrust Bearing Alkali Resistant ISO Certificationpe oil seal, can effectively prevent bearing grease inside the spillover.
Quick Detail:
Product name: Deep groove ball bearing
Model number: 6008,6009,6010,6011,6012,6013,6014,6015/N/Zz/2RS
Precision rating:P0 P6 P5
Clearance:C0 C1 C2 C3
Cage:Stamping steel,Brass,Nylon,Ceramic
Sealed type:RS,2RS,Z,2Z
Vibration:Z1V1,Z2V2,Z3V3
Material:Gcr15,Stainless steel,Carton steel,Plastic,Ceramic,chrome
steel
2. Vibration tolerance date of single bearing Tolerance um/s
| Bore diancter | V | V1 | V2 | V3 | V4 | ||||||||||
| MM | L | M | H | L | M | H | L | M | H | L | M | H | L | M | H |
| 3,4 | 80 | 44 | 44 | 60 | 35 | 32 | 48 | 26 | 22 | 31 | 16 | 15 | 28 | 10 | 10 |
| 5,6 | 110 | 72 | 60 | 74 | 48 | 40 | 58 | 36 | 30 | 35 | 21 | 18 | 32 | 11 | 11 |
| 7,8,9 | 130 | 96 | 80 | 92 | 66 | 54 | 72 | 48 | 40 | 44 | 28 | 24 | 38 | 12 | 12 |
| 10,12 | 160 | 120 | 100 | 120 | 80 | 70 | 90 | 60 | 50 | 55 | 35 | 30 | 45 | 14 | 15 |
| 15 | 210 | 150 | 120 | 150 | 100 | 85 | 110 | 78 | 60 | 65 | 46 | 35 | 52 | 18 | 18 |
| 17 | 210 | 150 | 120 | 150 | 100 | 85 | 110 | 78 | 60 | 65 | 46 | 35 | 52 | 25 | 25 |
| 20 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 25 | 25 |
| 22,25 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 30 | 32 |
| 28 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 35 | 40 |
| 30,32 | 300 | 240 | 190 | 200 | 150 | 130 | 150 | 120 | 100 | 90 | 75 | 60 | 70 | 35 | 40 |
| 35 | 300 | 240 | 190 | 200 | 150 | 130 | 150 | 120 | 100 | 90 | 75 | 60 | 70 | 42 | 45 |
| 40 | 360 | 300 | 260 | 240 | 180 | 160 | 180 | 150 | 130 | 110 | 90 | 80 | 82 | 50 | 50 |
| 45 | 360 | 300 | 260 | 240 | 180 | 160 | 180 | 150 | 130 | 110 | 90 | 80 | 82 | 60 | 60 |
| 50 | 420 | 320 | 320 | 280 | 200 | 200 | 210 | 160 | 160 | 125 | 100 | 100 | 95 | 70 | 70 |
3.Materials of Rubber Seals
| Name Code | Characteristics | Using Temperature |
NBR Acrylonitrile-butadiene rubber | Oil resistance,heat resistance,resistance to wear | -40~120 |
FKM Fluorine rubber | Hear resistant,acid and alkali resistant and chemicals, oil resistance preferred | -20~200 |
VMQ Silicone rubber | Heat and cold resistance, good compression deformation is small, but the mechanical strength is not good | -60~230 |
ACM Polypropylene acid ester rubber | Heat resistance, oil resistance better than NBR, but resistance to water and alkali is not strong | -20~150 |
|
