| Categories | Thin Section Bearings |
|---|---|
| Brand Name: | VCD |
| Model Number: | 6204 ZZ/6203 ZZ/6202 ZZ |
| Certification: | ISO9001:2000 |
| Place of Origin: | Ningbo,China |
| MOQ: | 10000 pcs |
| Supply Ability: | 100000 pcs per month |
| Delivery Time: | 30 days according to purchasing quantity |
| Packaging Details: | Industrial plastic tube packing or single box packing |
| Steel Material: | Gcr15 Chrome Steels |
| Rubber Seals Materials: | NBR/ACM/FKM+SPCC |
| Steel Balls: | Tolerance G10 |
| Cages: | Steel or plastic |
| standard: | ISO9001:2000 |
| vrand: | VCD |

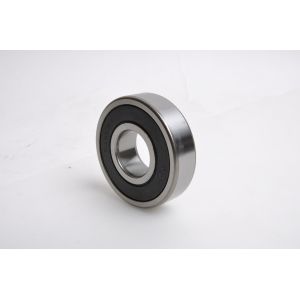

6204 ZZ/6203 ZZ/6202 ZZ electric motors Used ball bearings,high speed and working temperature
1. Materials of Bearing Seals
Bearing seal form into dust cover and plastic material seal. There are various types of seal. Because of different seal material, bearing to adapt condition will also change.
| Name Code | Characteristics | Using Temperature |
NBR Acrylonitrile-butadiene rubber | Oil resistance,heat resistance,resistance to wear | -40~120 |
FKM Fluorine rubber | Hear resistant,acid and alkali resistant and chemicals, oil resistance preferred | -20~200 |
VMQ Silicone rubber | Heat and cold resistance, good compression deformation is small, but the mechanical strength is not good | -60~230 |
ACM Polypropylene acid ester rubber | Heat resistance, oil resistance better than NBR, but resistance to water and alkali is not strong | -20~150 |
Main Production:
Deep Groove Ball Bearing / Angular Contact Ball Bearing/ Taper Roller Bearing/ Spherical Roller Bearing /Cylindrical Roller Bearing / Thrust Ball Bearing /Thrust Roller Bearing /Self-aligning ball bearing/Self-aligning roller bearing/Pillow Block Bearing /Needle Roller Bearing /Tracking Roller Bearing/ Auto Bearing Etc.
2.National Standard of Radial Clearance.
| Bore | C2 | C0 | C3 | C4 | C5 | ||||||||
| Over | Including | ||||||||||||
| mm | Inch | mm | Inch | Min | Max | Min | Max | Min | Max | Min | Max | Min. | Max |
| 2.5 | 0.0984 | 10 | 0.3937 | 0 | 7 | 2 | 13 | 8 | 23 | 14 | 29 | 20 | 37 |
| 10 | 0.3937 | 18 | 0.7087 | 0 | 9 | 3 | 18 | 11 | 25 | 18 | 33 | 25 | 45 |
| 18 | 0.7887 | 24 | 0.9449 | 0 | 10 | 5 | 20 | 13 | 28 | 20 | 36 | 28 | 48 |
| 24 | 0.9449 | 30 | 1.1811 | 1 | 11 | 5 | 20 | 13 | 28 | 23 | 41 | 30 | 53 |
| 30 | 1.1811 | 40 | 1.5748 | 1 | 11 | 6 | 20 | 15 | 33 | 28 | 46 | 40 | 64 |
| 40 | 1.5748 | 50 | 1.9685 | 1 | 11 | 6 | 23 | 18 | 36 | 30 | 51 | 45 | 73 |
| 50 | 1.9685 | 65 | 2.5591 | 1 | 15 | 8 | 28 | 23 | 43 | 38 | 61 | 55 | 90 |
|
