| Categories | Aluminum Oxide Ceramic |
|---|---|
| Brand Name: | KAMTAI |
| Model Number: | KTJC14-16 |
| Certification: | ISO 9001 |
| Place of Origin: | CHINA |
| MOQ: | 3000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 20000PCS/ MONTH |
| Delivery Time: | 25 DAYS AFTER PAYMENT |
| Packaging Details: | CARTON BOX AND PLYWOOD PALLET |

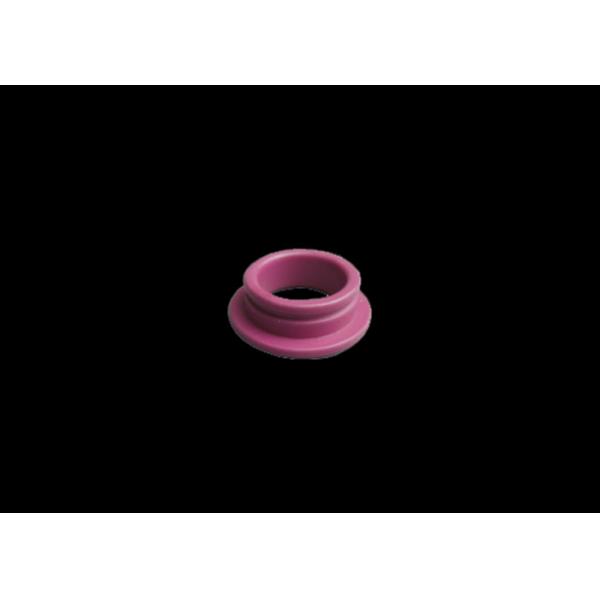

| Name: | Fine Polished high Alumina Wire Thread Ceramic Yarn Guide For Textile Machinery |
| Color: | Pink |
| Bulk density: | >3.6g/cm3 |
| Features: | High wear resistance |
| MOQ: | 3000 |
1.Description
Our industrial ceramic parts include, tube, rod, plate, disc,
wafer, ring, seal, bearing, valves, pump plunger, beam, roller,
shaft, screw, washer, sleeve, hunger, spacer, holder, carrier,
insulator, fixture, clamp, chuck, nozzle, guide, frame, lining, and
grinding media, milling ball or beads.
These precision toleranced ceramic components or assemblies are
used in a wide range of semiconductor, electronic, electrical,
mechanical, chemical, automotive, textile and the other industrial
engineering applications, due to their extreme hardness, more
resistances to wear, heat, corrosion, high electric insulation, and
low thermal expansion.
2.Specification
-Lower medium spoilage
-Good insulation performance
-Wear resistance
-High strengh
Alumina textile white ceramic
| Item | Testing condition | Unit | 95% al2o3 | 99% al2o3 | 99% al2o3 | 99.5% al2o3 | zirconia |
| Bulk density | g/cm3 | >3.60 | 3.7 | 3.7 | 3.7 | 6 | |
| Flexural Strength | N/m2×103 | 2.24 | >2.24 | >2.24 | >2.74 | 11 | |
| Coefficient of linear expansion | 20~800°C | ×10-6/°C | 6.5~8.0 | 6.5~8.0 | 6.5~8.0 | 6.5~8.0 | 9.5 |
| Permittivity | 1MHz | 9~10 | 9~10.5 | 9~10.5 | 9~10.5 | / | |
| 10GHz | 9~10 | 9~10.5 | 9~10.5 | / | / | ||
| Insertion loss | 1MHz | ×10-6 | ≤4 | ≤2.5 | ≤2.5 | ≤1.5 | / |
| 10GHz | ×10-6 | ≤10 | ≤6 | ≤6 | / | / | |
| Bulk density resistance | 100°C | Ω·Cm | >1013 | >1013 | >1013 | >1014 | >1012 |
| Puncture strength | KV/mm | 15 | 15 | 15 | / | / | |
| Thermal conductivity | 20°C | W/m·k | 25.2 | 25.2 | 25.2 | 29.2 | 3 |
3. Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and
wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed
We can supply the products according to customer's drawings,
samples and performance requirement.
|
