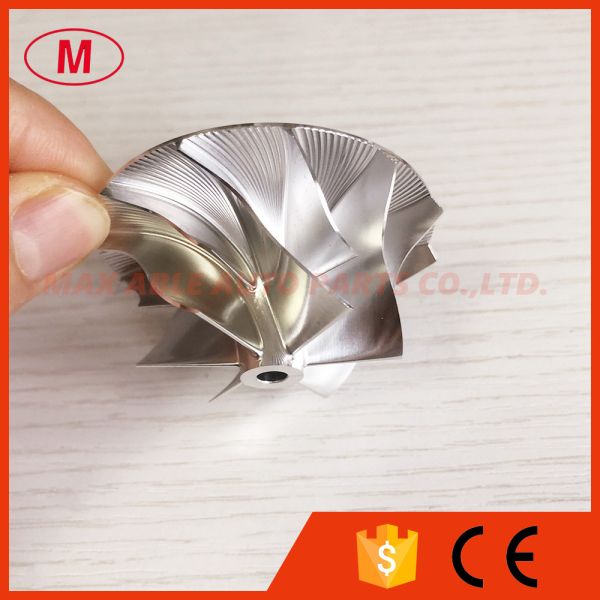

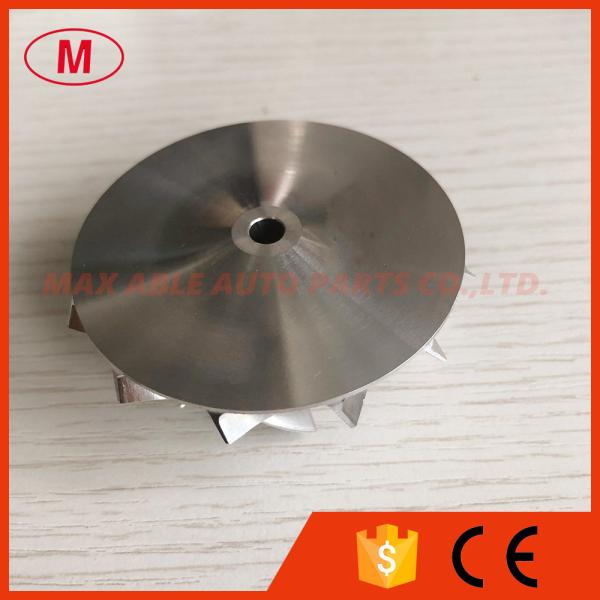

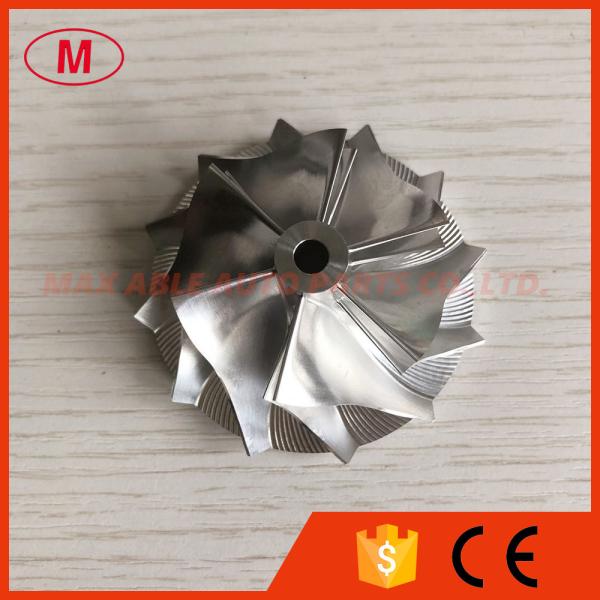

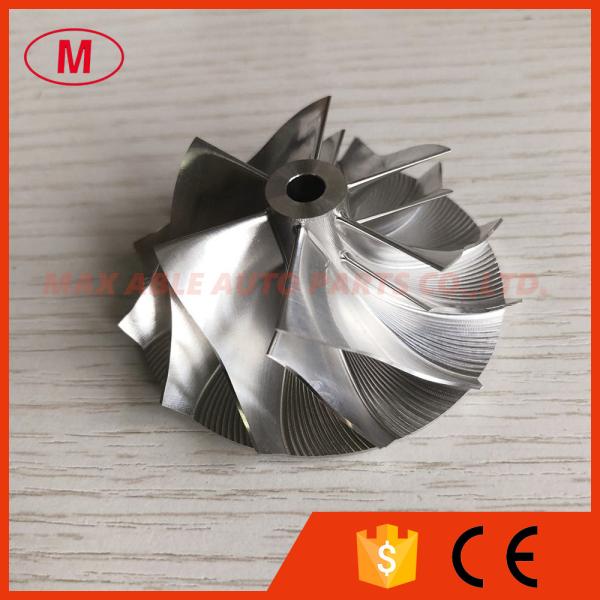

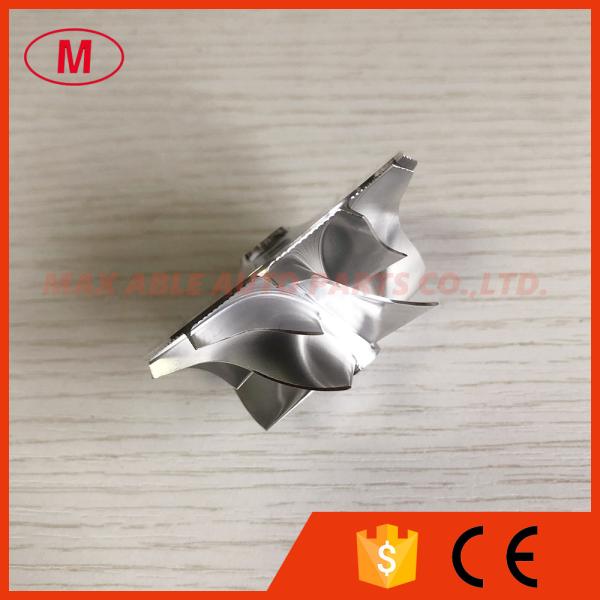

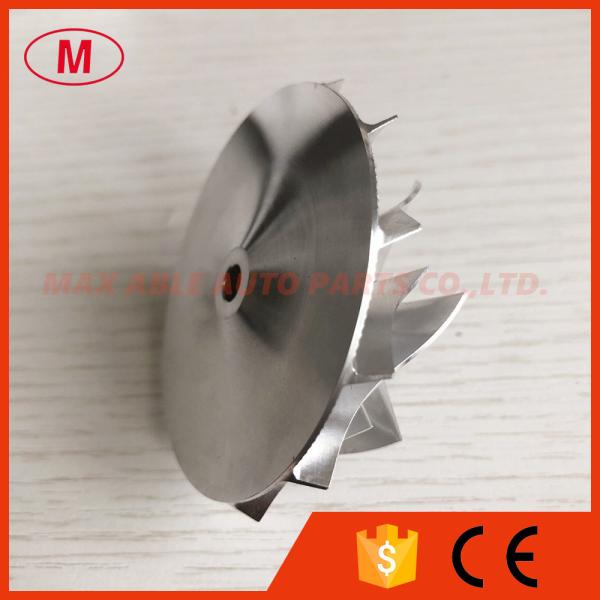

TD04H 15T 41.93/55.69mm 6+6 blades high performance Turbo Milling/aluminum 2618/billet compressor wheel

1. MODEL:TD04H 15T Forward

2. TD04H 15T 41.93/55.69mm 6+6 blades high performance Turbo Billet/Milling/aluminum 2618 compressor wheel .
3.Size:

Nose diameter:10.70mm

Inducer:41.93mm

Exducer:55.69mm

Tapered tip exducer:59.97mm

Tip height:4.71mm

Superback:1.90mm

Overall height:23.90mm

Bore size:5.00mm

bore type:through

Trailing angle:60

Cutback:0.0

SP height angle:-4.60

Blade height:20.17mm

Splitter height:14.00

6+6 blades

Forward

Tapered tip angle:30 degree

IT is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.

6.Application: Mitsubishi

All the compressor wheels have been balanced.
