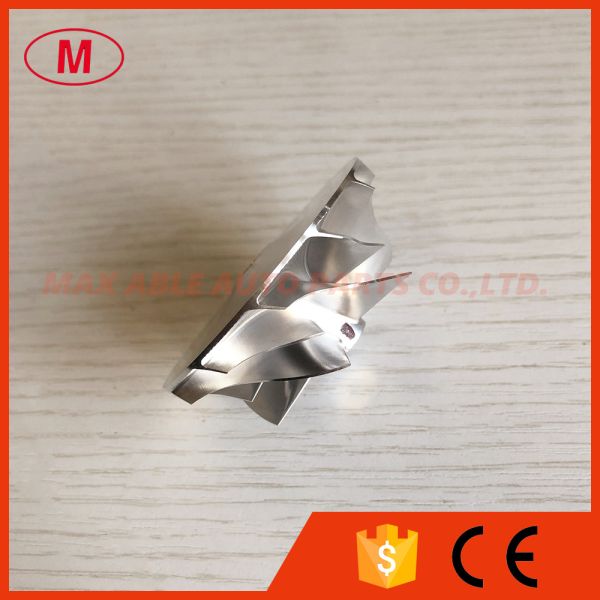

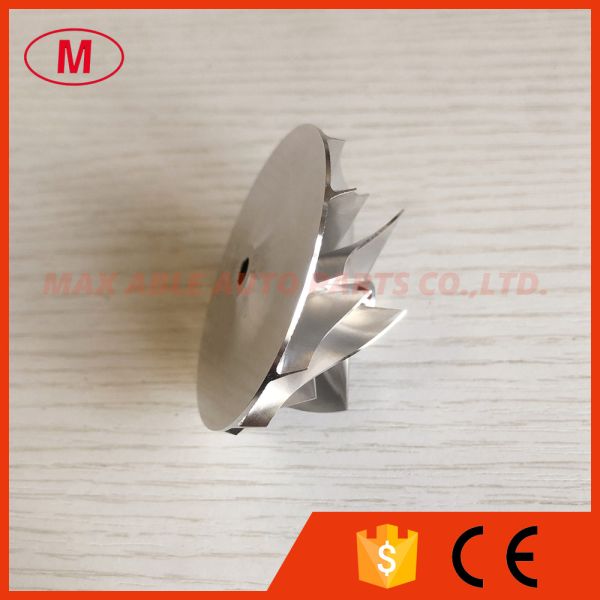

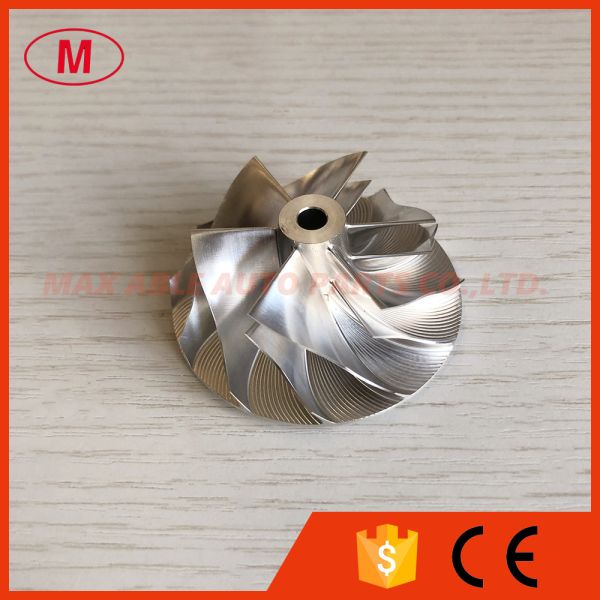

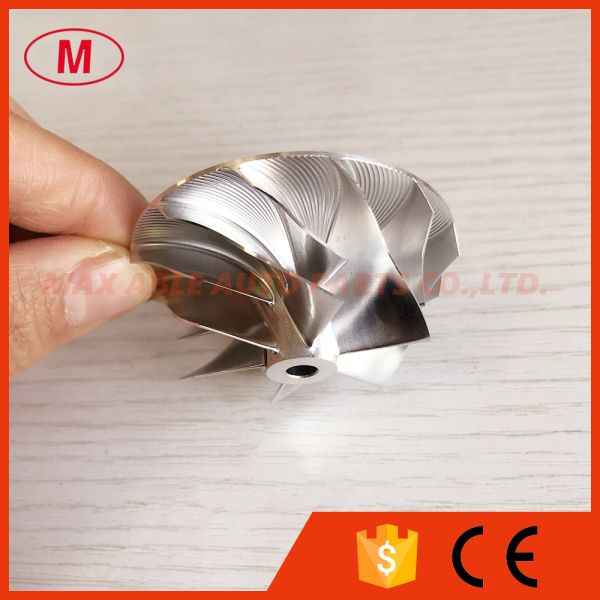

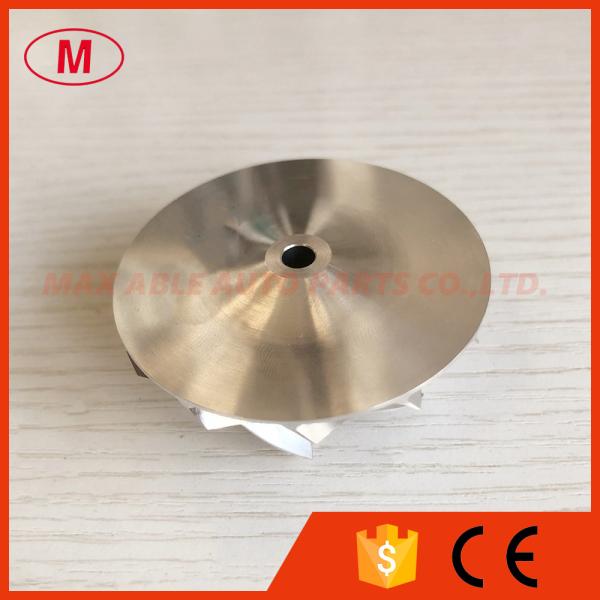

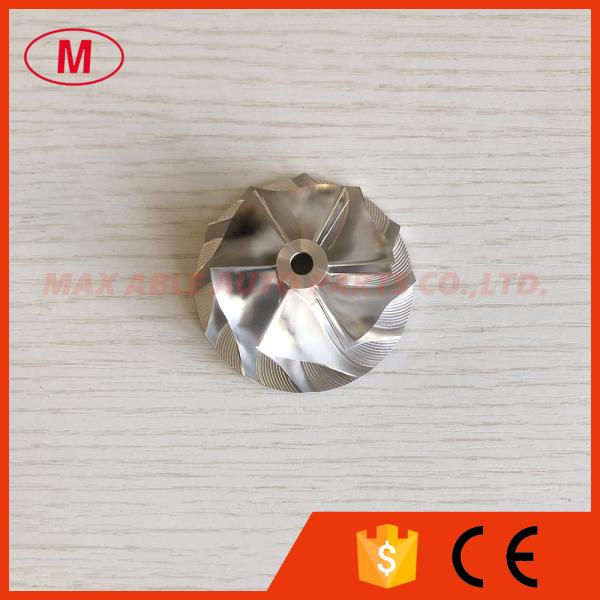

TD04H 15T 6+6 blades 41.93/55.69mm superback Tapered tip angle:0 degree Milling/aluminum 2618/billet compressor wheel

1. MODEL:TD04H 15T Forward

2. TD04H 15T 41.93/55.69mm 6+6 blades Turbo Billet/Milling/aluminum 2618 compressor wheel .
3.Size:

Nose diameter:11.56mm

Inducer:41.93mm

Exducer:55.69mm

Tip height:5.20mm

Superback:1.90mm

Overall height:23.90mm

Bore size:5.00mm

Trailing angle:60

Cutback:0.0

SP height angle:-6.00

Blade height:20.17mm

Splitter height:13.50

6+6 blades

Forward

Tapered tip angle:0 degree

IT is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.

6.Application: M-itsubishi

All the compressor wheels have been balanced.

we can do as the requirement ,the. minimun order is 5pcs

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
