Custom Cca Treatment Plant / HF Vacuum Timber Wood Drying Machine

Have Sold To Tanzania Wood Treatment Plant With Filter System High Configuration

Ⅰ Product description

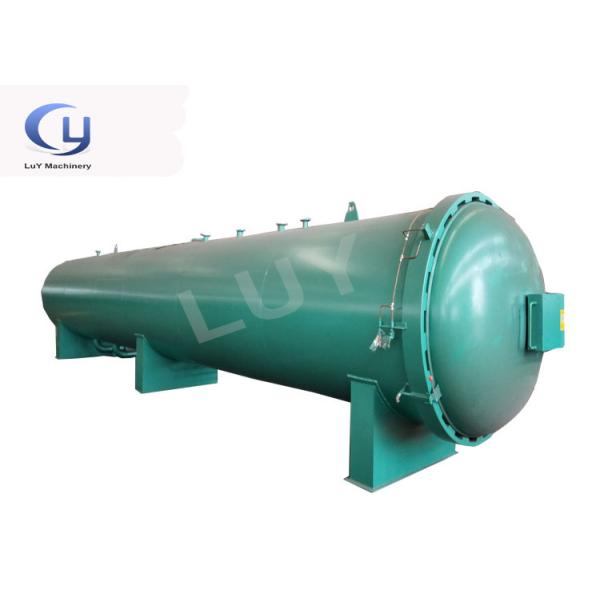

Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes. This wood treatment plant applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.

This wood Treatment Plant have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.Has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood.

Ⅱ Main Model

Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.

Ⅲ Technical parameters

Design pressure:1.58MPA

Voltage:can be customized according to users’ needs

Vacuum operation:-0.098MPA

Working medium: various water-soluble agent like CCA ACQ

Working pressure:1.0-1.4MPA

Material:Q345R carbon steel

Ⅳ Technology Process

Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete

ⅤOur advantages

1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
Each day saving much production cost for the users .

2.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.

3. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.

4. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.

5. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.

Since 2008， Luy Machinery Equipment CO., LTD have more than 10 years experience in pressure vessel, the company covers an area of 5300m2 and has more than 200 employees. It is a modern new-type equipment manufacturing enterprise integrating design, manufacture and sales.

Our main products are wood impregnation equipment, cerosote wood treatment plant, wood heat treatment plant, rubber curing autoclave, composite autoclave, wood drying machine and ect. All equipments can be customized according to the customer's product process requirements, to the maximum satisfaction of different products technical and process requirements for the product.

We have exported to many countries, like Philippines, Uganda, Zambia, Kenya, Switzerland,Thailand, South Korea, Tanzania, Myanmar, Russia, Indonesia and ect.
