| Categories | Security Barbed Wire |
|---|---|
| Brand Name: | SS |
| Certification: | SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 tons/ton |
| Price: | US $300-600 / Tons |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 tons/ton per week |
| Delivery Time: | 10-15days after confirming the order |
| Packaging Details: | Barbed wire packaging is Plastic inside and hessian outside or plastic inside and waving bag outside. 1)in nude 2)in iron axletree 3)in wood axletree; |
| material: | galvanized |
| type: | razor |
| wire dia: | 12*14 Gauge |
| barbed distance: | 7.5-15cm |
| weight: | 8-25kgs/roll |
| certificated: | SGS |
| application: | used as barrier for lawn |
| barbed length: | 10mm-65mm |
| sample: | free |
| name: | barbed wire |

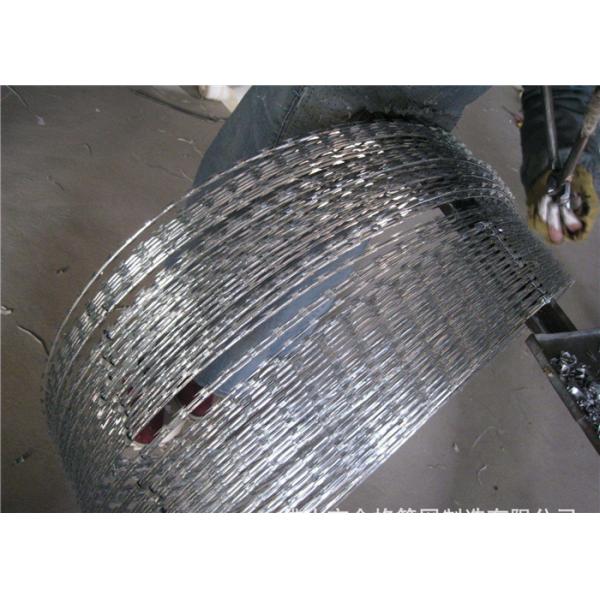

stainless steel razor wire mesh/razor wire fence /CBT-65 razor fence mesh/hot-dipped galvanized razor barbed
Galvanized and pvc Razor barbed wire galvanized and pvc barbed wire is also named razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

| Barbed Tape Wire Specification | |||||
| Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil | |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil | |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil | |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil | |
| 450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |
Peference number | Thickness (mm) | Wire dia (mm) | Barb length (mm) | Bard width (mm) | Bard spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Galvanized and pvc Razor barbed wire Weave characteristics: twist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plastic coating, stainless steel, etc.
Galvanized and pvc Razor barbed wire Advantages: Used barbed wire mesh is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality.

Galvanized and pvc Razor barbed wire packing:
1>3kg - 15kg per roll,liner waterproof paper ,outside weaving
bag.
2>300-500kg per bundle .
3>Use carton box,pallet or according to your requirments.
4>As customer requirment.

|
