| Categories | DC Solar Cable |
|---|---|
| Model Number: | H1z2z2-k 1x 6mm2 |
| Certification: | ISO9001/TUV/CE |
| Place of Origin: | China |
| MOQ: | 200m |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70000m per day |
| Delivery Time: | 3-10days |
| Packaging Details: | 200m per roll, 400m per carton |
| Product name: | DC solar pv cable |
| Rated Voltage: | 1800V DC |
| Current: | 70A |
| Color: | Black or red |
| Weight: | 95kg/km |
| Packing: | 200m per roll |
| Company Info. |
| ZHEJIANG PNTECH TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

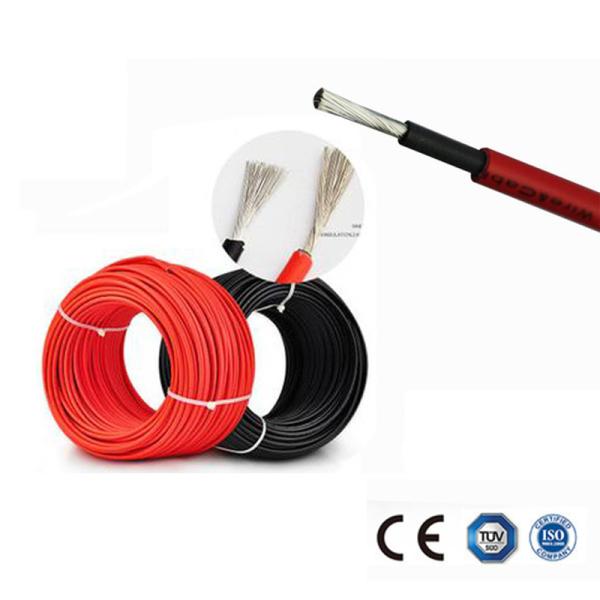

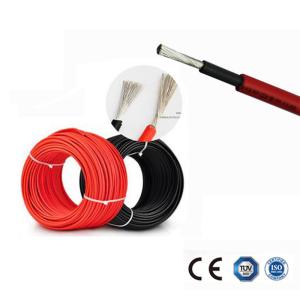

TUV CE certificated DC single core PV1-F 6mm2 solar pv cable for solar panel
Specificate
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
| Size | Cross Section | Conductor Structure | Outer Diameter | Max. DC | Rated | Rated |
| Resistance at 20℃ | Voltage | Current | ||||
| mm² | mm | mm | Ω/km | V DC | A | |
| 1 x 2.5mm² | 2.5mm² | 49 x ∅0.25 | 5.4 | 8.06 | 1000/1500 | 30A |
| 1 x 4.0mm² | 4.0mm² | 56 x ∅0.285 | 6.1 | 4.97 | 1000/1500 | 50A |
| 1 x 6.0mm² | 6.0mm² | 84 x ∅0.30 | 7.1 | 3.52 | 1000/1500 | 70A |
| 1 x 10.0mm² | 10.0mm² | 80 x ∅0.40 | 8.5 | 2.12 | 1000/1500 | 95A |
Application :
Specifically designed for connecting photovoltaic system components
inside and
outside of building and equipment with high mechanical requirements
and extreme weather
conditions .For permanent installations.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
| 25,16 and 10, 6,4,2.5 mm2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as
well as dual cores,
please consult me directly if necessary)
Product Packaging and Shipping Information:
Our DC Solar Cable product is carefully packaged to ensure its safe delivery to you. Each cable is coiled neatly and placed in a sturdy cardboard box to prevent any damage during transit.
Shipping Information:
We offer fast and reliable shipping for all orders of our DC Solar Cable. Your order will be processed and shipped within 1-2 business days. Once shipped, you will receive a tracking number to monitor the status of your delivery.
Q: What is the model number of the DC Solar Cable?
A: The model number is H1Z2Z2-K.
Q: Where is the DC Solar Cable manufactured?
A: The product is manufactured in China.
Q: What certifications does the DC Solar Cable have?
A: The DC Solar Cable is certified by TUV, CE, ISO9001, CQC, CPR, and BCA.
Q: What is the minimum order quantity for the DC Solar Cable?
A: The minimum order quantity is 500.
Q: What are the packaging details for the DC Solar Cable?
A: The DC Solar Cable is packaged in rolls of 100m each.
|
