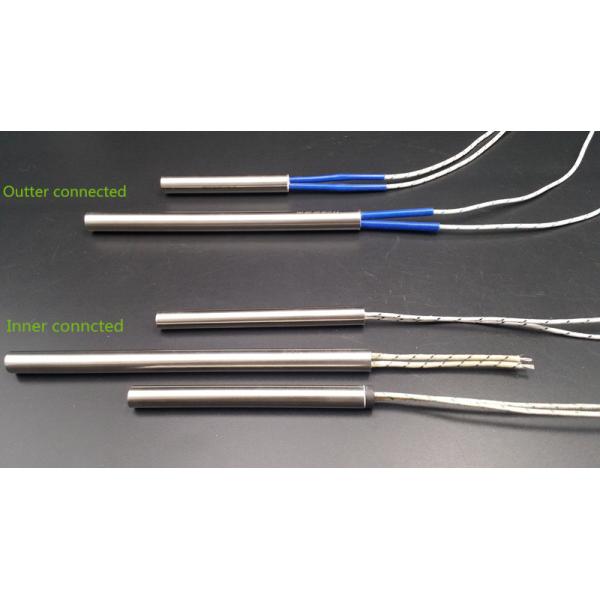

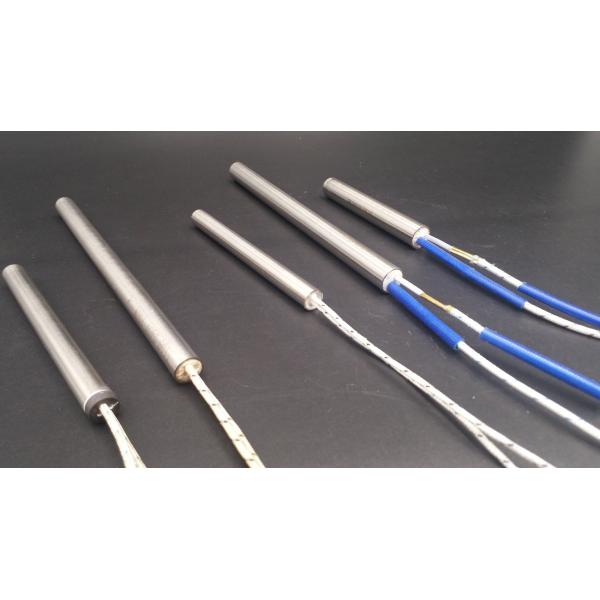

12v Immersion Cartridge Heaters Industrial Heating Elements 220v 500w

12V Immersion Cartridge Heater Heating Element 220V 500W

Material Specification

· Welded watertight base (Tig).

· Stainless steel AISI 304/316/321/ INCOLOY.

· Disc ceramic insulator.

· Pure magnesium oxide (UCM, Tateho).

· Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.

· MGO Rod: Tateho, OTC.

· High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.

· Conductor without connections.

Connecting wires

a. Fiberglass insulation nickel wire (temperature 450 degrees -750 degrees)

b. Crimp wire (temperature 250 degrees)

c. Crimp silicon insulated wire (temperature 200 degrees)

· Injection moulding - Internal heating of nozzles

· Hot runner systems - Heating of manifolds

· Packaging industry - Heating of cutting bars

· Packaging industry - Heating of hot stamps

· Laboratories - Heating of analytical equipment

· Medical - Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

· Telecommunications - Deicing, Enclosure Heater

· Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters

· Food Service - Steamers, Dish Washers,

· Industrial - Packaging Equipment, Hole Punches, Hot Stamp.

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
