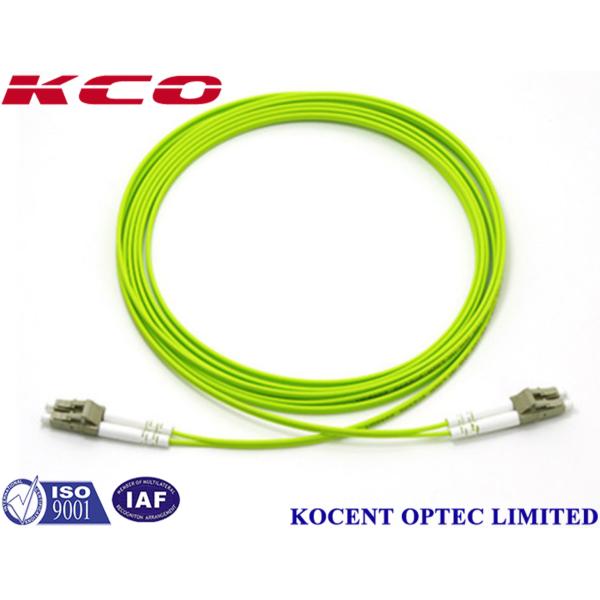

LC-LC Duplex Multimode OM5 Fiber Optic Patch Cord with 0.35dB Insertion Loss and 60dB Return Loss

LC-LC Duplex Multimode OM5 Fiber Optic Patch Cord with 0.35dB Insertion Loss and 60dB Return Loss

LC-LC Duplex Multimode OM5 Fiber Optic Patch Cord with 0.35dB Insertion Loss and 60dB Return Loss
LC-LC Duplex Multimode OM5 Fiber Optic Patch Cord with 0.35dB Insertion Loss and 60dB Return Loss
Categories Fiber Optic Patch Cord
Brand Name: KCO
Model Number: LC Duplex
Certification: RoHS, ISO9001
Place of Origin: Guangdong, China
MOQ: Negotiation
Price: Negotiation
Payment Terms: Western Union,T/T,L/C
Supply Ability: 50,000pcs/month
Delivery Time: 2~7 days after get payment
Packaging Details: PE bag, carton box, wooden pallet
Connector 1: LC
Connector 2: LC, SC, FC, ST
Fiber: 2 fiber
Insertion loss: 0.35dB
Return Loss: 60dB
Fiber type: Multimode OM5
Color: Lime Green
Cover: PVC, LSZH
Contact Now
Company Info.
KOCENT OPTEC LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LC-LC Duplex Multimode OM5 Fiber Optic Patch Cord with 0.35dB Insertion Loss and 60dB Return Loss

LC-LC Duplex Multimode OM5 Lime Green Fiber Optic Patch Cord 10m 20m 30M
Description:

OM5 wideband multimode fiber is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.

OM5 Fiber cable assembly:
  • OM5 multimode 50/25 fiber cable assemblies, including LC, SC, ST, FC, E-2000, MPO, MTP connectors, from simplex, duplex to multi core break out cables.
  • Custom made OM5 cables with different length, cable jacket, connector types.
  • OM5 50/125 multimode fiber cables are designed for used in high efficiency data centers and interconnected buildings.
  • The OM5 multi-mode fiber specifications follows the TIA-492AAAE in the ISO/IEC 11801 Edition 3 and the American National Standards Institute cabling standard ANSI/TIA-568.3-D as well as IEC 60793-2-10 edition 6.
  • OM5 multimode fiber cable is fully compatible to previous multimode standards OM3 and OM4 yet the OM5 can achieve much higher speed with less fiber cores.
  • OM5 uses the color Lime Green
Applications include
  • ISP or Broadband network
  • Data center Network
  • Data-com Network
Parameter
ModeSingle modeMultimode
PolishUPCAPCPC
Insertion Loss≤0.2dB≤0.2dB≤0.2dB
Return Loss≥50dB≥60dB≥35dB
Test Wavelength1310/1550nm850/1310nm
Durability(500 Matings)≤0.2dB
Operating Temperature-20℃~+70℃
Storage Temperature-40℃~+85℃
Fire ResistantIEC 60794-2-30
Standards-CompliantROHS,IEC and GR-326
Specification
Fiber typeSingle mode:
  • (1)9/125-G652D
  • (2)9/125-G655
  • (3)9/125-G657A,G657A2,G657B2,G657B3
Multimode:
  • (4)50/125-OM2
  • (5)62.5/125-OM1
  • (6)50/125-OM3
  • (7)50/125-OM4
Fiber brandYOFC, Corning, OFS...
Connector typeSC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
Cord typeSimplex, Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter0.9mm, 2.0mm, 3.0mm....
Cable jacketPVC, LSZH, OFNR, OFNP
Length(M)0.3m,1m,2m,5m,10m,25m,50m,100m
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

  • Carton box
  • Wooden box
  • Wooden pallet
Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
KOCENT OPTEC LIMITED, A Reliable Partner Of Fiber Optic Supplier:

We care about our customers business and their requirements.

We look to nurture and build long-lasting relationships with our distributors, and work closely with installers, design consultants, system integrators and end users to build channel opportunities.

Our finger is on the pulse when it comes to our markets and we continually observe emerging trends and technological innovation.

We are in a very fast moving industry, so we stay flexible and adaptable to keep our customers at the forefront.
