Name: Tension Stringing Equipment TY1x20III Engine Japan Honda Hydraulic Tensioner Max Continuous Pull 20kN
Brand: BOYU
Price: 1 USD

Home > Hydraulic Tools >

Tension Stringing Equipment TY1x20III Engine Japan Honda Hydraulic Tensioner Max Continuous Pull 20kN

Categories	Tension Stringing Equipment
Brand Name:	BOYU
Model Number:	TY1x20III
Certification:	ISO
Place of Origin:	YIXING
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	100sets/month.
Packaging Details:	Container
Price:	Negotiable
Delivery Time:	15~25 days
Bull-wheel diameter:	800mm
Max conductor diameter:	22.5mm
Groove width:	55mm
Groove number:	5
Total weight:	1150kg
Overall dimension (lengthwidthheight):	250015001700mm
Max continuous pull:	20kN
Speed at max pull:	2.5km/h

Contact Now

Add to Cart

Company Info.

Yixing Boyu Electric Power Machinery Co.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

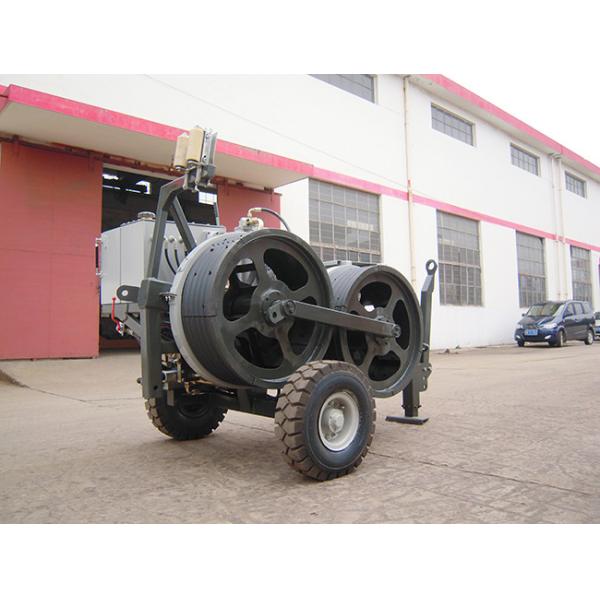

TY1x20III Hydraulic Tensioner

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Characteristics

Performance

Main configuration

Engine

Configuration

Other Models

Model	Bull-wheel diameter	Max conductor diameter	Max optical fiber cable diameter	Groove width	Groove number	Total weight	Overall damension
Model	mm	mm	mm	mm		kg	mm
TY1X7.5	1100	24	21	220	1	850	230012501620
TY1X20	1300	40	21	55	5	1920	408019302300
TY1X20II	800	23		45	5	950	240015001650
TY1X20III	800	22.5		55	5	1150	250015001700
TY1X30	1300	40	21	60	5	2064	370019502150
TY1X40	1300	40	21	55	5	3430	400020002300
TY1X50	1300/1500	55	21	68	6	2400	400019002300
TY140IV	1500	40			16	10000	550022802700
TY2X35	1300	40			2x5	4500	430022502700
TY2X40	1300/1500	40			2x5	6230	430022502700
TY2X50	1300/1500	40			2x5	6000	470023002700
TY2X70	1700	40			2x6	7500	470023002700
TY2x70IV	1500	40			2x8	10000	550022802700
TY2X90	1900	50			2x6	7500	540023002700
TY4x50	1500	40			4x5	13000	590023002700
