Rotor Copper Wire Armature Coil Equipment Weight 1180kg Three Phase Ac380v

Automatic Rotor Copper Wire armature winding machine , Weight 1180Kg

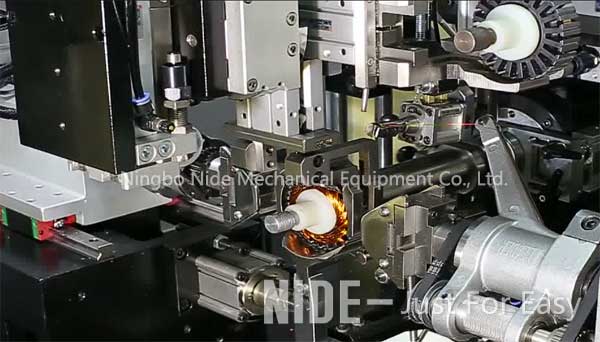

This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding,indexing and wire cutting, only load and unload armature from material loader. Equipped with touch screen and PLC, winding parameter could be set and modified on the screen. We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. Below parameter is our standard machine, we could produce machine according to customer's armature accordingly.

(1) Technical Parameter:

(2) Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.

(3) The operation steps of this machine
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

Automatic rotor armature winding machine winding diagram

Ningbo Nide Tech Co., Ltd, adhering to the customer-centric concept, focuses on the stator, rotor and complete assembly of various motors, and provides customers with one-stop solutions for highly automated, intelligent and flexible production.

The company was established in 2010 and has 4 subsidiaries: Zhejiang Nide Automation Tech Co., Ltd., Jiangsu Nide Automation Tech Co., Ltd., Ningbo Nide International Co., Ltd.，Ningbo Lingfeng Danuo Property Service Co., Ltd. and 3 international affiliated company: NIDE India PVT, NIDE USA LLC，NIDE Wintech SRL.

After years of development, NIDE has gradually accumulated a certain influence and brand effect at home and abroad. At present, the products cover the professional manufacture of new energy motor stator and rotor, hairpin motor, automatic aluminum casting rotor line, brushless motor/ BLDC motor, universal motor, wheel hub motor, etc., which are used in new energy vehicles, household appliances, industrial motors, water pump motors, servo motors, etc. The company integrates R&D, production and sales, and wholeheartedly serves customers at home and abroad, aiming delivering value and achieving a win-win situation.

Focus on providing one-stop solution to motor manufacturing.

Three business divisions:

1. Motor manufacturing machines.

2. Motor components.

3. Technical consulting and turn-key service.

The Core business is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers’ confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.
