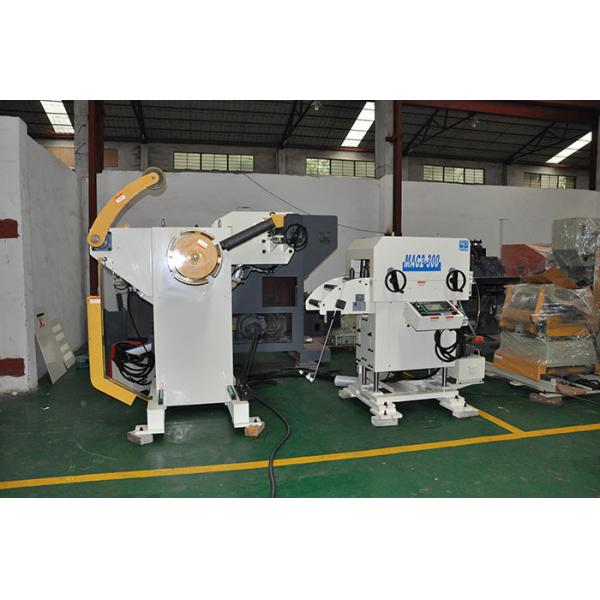

High Speed Press Roller Decoiler Straightener Feeder Punching Equipment

High Speed Press Roller Decoiler Straightener Feeder Punching Equipment

The bottom of the high-speed roller feeder is equipped with a transmission shaft, and its extended shaft end is connected with the roller rod through a rocker arm and a cross joint.

The feed port of the fuselage is provided with a guide roller to guide the feed, and a spring for the press material is arranged at the top of the discharge port. The feed roller is disposed above the drive shaft in the fuselage.

When the punching device is started to transmit the rotating power of the feeding roller, the roller clamp material is accurately fed to the positioning by the appropriate pressing force of the pressing roller, and the releasing rod of the relaxing shaft is timely pressed by the die relaxing device.

The inner edge of the shaft of the rotating shaft is loosened and the recess of the top adjusting seat is turned, and the material of the pressing roller is lifted to release the material intermittently.

When adjusting the pressure roller and the feeding roller for different material thickness holding, there is no transmission gear setting between the two, no need to consider the different transmission contact gap and transmission time difference which have different meshing depths, and ensure the adjustment.

Convenience and stability of feeding accuracy.

Special Note: After using the roller feeder for a long time, the friction between the loosely-notched seat and the adjusting seat can easily cause wear and tear. The operator can remove the buckle or the latch at this time, which can be used from any side wall of the fuselage. Pull out the loose shaft and change the notch seat to continue using.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
