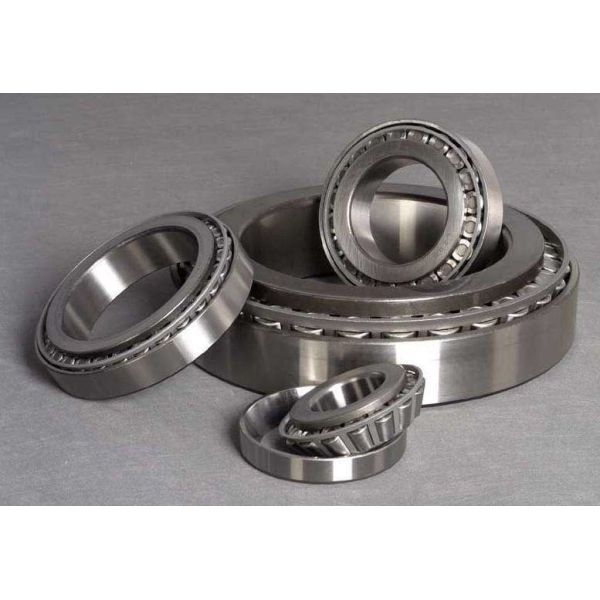

H936349 / H936310 Double Row Taper Roller Bearing Self Aligning Bearing

H936340/H936316

Tapered roller bearings H936340/H936316

Bearing number : H936340/H936316

Size (mm) : 155.575x342.9x85.725

Bore Diameter (mm) : 155,575

Outer Diameter (mm) : 342,9

Width (mm) : 85,725

Bearing dimensions and specification in catalogue:

d - 155,575 mm

D - 342,9 mm

T - 85,725 mm

B - 79,375 mm

C - 53,975 mm

R - 6,3 mm

r - 6,3 mm

a - 16,8 mm

Da - 311,5 mm

db - 209 mm

da - 192,5 mm

Db - 287 mm

Aa - 18,4 mm

Ab - 8,4 mm

Weight - 34,44 Kg

Basic static load rating (C0) - 1400 kN

Factor (G1) - 637,7

Factor (G2) - 69,1

Factor (Cg) - 0,0433

Factor (K) - 0,72

Basic dynamic load rating (C90) - 249

Basic dynamic load rating (Ca90) - 345

Basic dynamic load rating (C1) - 960 kN

Calculation factor (e) - 0,81

Calculation factor (Y) - 0,74

Tags : 155.575x342.9x85.725

H936340/H936316 bearing are widely used in industrial drive, agriculture, compressors, motors and generators, construction, industrial fan, industrial transmission and other fields. we can ensure high quality for more than 80% raw material of bearing provided by the steel plant.Explorer series bearing of bearing are better than any brand bearings currently in bearing performance , lifetime, design, and the use of performance. Explorer series bearings of bearing have more advantages ,such as higher meet rated , lower noise, reducing warranty costs greatly, increasing running time of the machine .

We can help our customers meet their requirements for branded bearings. Please call us or email to check on our latest prices, stock availability and to request product data sheets.

MONTON bearing a main manufacturers leader of high precision bearings in China was established in 2001 locate in Luoyang--“Ancient Imperial Capital and Peony Flower City”,we specialized in the bearing production research and development more than 20 years , focus on the development of "High-tech, High precision, Advancing, customized" bearings development .MONTON covers an area of of 35000 sq.m., building area of 20000 sq.m., including office area 3000 sq.m., research and development center of 500 sq.m., and international marketing & reception center 2000sq.m.Our mission is to provide customers with complete solution, including design and development, manufacturing, testing and evaluation, and excellent after-sales service.The factory is located in the Bearing Industry Park of Yiyang County, Luoyang City, Henan Province.

MONTON bearing mainly produce high precision angular contact ball bearing, ball screw support bearing,Low temperature bearing,High speed motor bearings, military thin section ball bearing,special high precision bearing, crossed roller bearing,harmonic drive bearing,thrust bearing stack,Tungsten Carbide Radial Bearing, military thin section ball bearing,tandem bearing,cylindrical roller bearing, customized bearing and bearings parts, The bearing accuracy at P5/P4/P2 level, rolling elements from φ1mm to 160mm, precision degree Ⅰ、Ⅱ.We Contributions to important scientific research projects of several well-known universities, including Henan University of Science and Technology, Dalian University of Technology, Harbin Institute of Technology, Beijing University of Science and Technology, Beijing traffic University, and China Petroleum etc.

We produce bearings and parts with inner diameter of 1.5mm to an outer diameter of 3000mm. Our products have been widely used in important industrial fields such as CNC machine tools, high-speed spindles, precision measurement instruments, oil drilling, petrochemicals,Cryogenic pump, FANUC/Siemens motors, mining metallurgy, port machinery, medical equipment, extruder gearbox, Cement roller press, vertical mill, rocker arm, textiles equipment, paper mill,robotics, harmonic drive, concrete mixer trucks, steel mills, rolling mills,Wind Power,Continuous casting mill, UAV, Air Compressor,Tension levelers,LIDAR systems,missile tracking camera ,aerospace, etc.

Our company have very good products quality guarantee equipment, key equipment and instrumentation are imported or design special equipment for special procedure by us. Main instrumentation is Japan ACCRETECH, TAYLOR,ZEISS Germany etc. Established precision bearing product testing laboratory, we can test bearing performance and life,Passed ISO9001 quality system certification, with an annual production capacity of 1 million sets of various precision bearings.

MONTON owns CNC lathes, machining centers, CNC grinding machines, and ultra precision equipment more than 160 sets. 10 CNC lathes, 65 CNC precision grinding machines, and 1set 4-axis machining center. 2 sets Ultrasonic cleaning line and equipment,2 sets tempering and stabilizing furnaces,1set heat treatment furnace，1sets low temperature stabilization equipment and vacuum equipment,8 production lines of automatic assembly.Inspection equipment include Mitotoyo Japan Contour,roundness measuring instrument,hardness tester,coordinate measuring instrument, length measuring instrument,vibration measuring instrument,contact angle goniometer,Bearing convexity value measuring instrument,hardness tester,Metallographic tissue measuring instrument,Clearance measuring instrument,height measuring instrument,Inner diameter outer diameter and rotation accuracy measuring instrument etc.

We have more than 140 employees, including 10 technical persons and 25 inspection persons. There are 5 persons with a master's degree, 25 persons with bachelor's degree, and 30 with vocational degree currently .

With advanced production equipment and perfect testing technology, MONTON can guarantee the quality and accuracy of the products we produced. Our technical department can efficiently complete the bearing design according to customer needs, and customers who need non-standard bearings can also enjoy customized services. Our quality system regularly monitors various production facilities and complies with strict quality requirements. All material certificates and certification reports are kept in files. Products are traceable and can be provided on request. Therefore, we are confident to provide the best solutions for global customers. Our company can design non-standard bearings and special application bearings for customer, as well as customized products with samples!
