Economical Electric Mud Pump Well Drilling BW 250 For Submersible

Categories Drilling Mud Pump
Model Number: BW160 / BW200 / BW250
Certification: ISO9001
Place of Origin: China
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20000Set/Year
Delivery Time: Within 7-12 days
Packaging Details: Standard export transportation package
Brand Name: ShiTan
mud pump motor: water well mud pump
Standard or Nonstandard:: Standard
Application: Submersible
name: portable mud pump
Pressure: Low Pressure
Fuel: electric,diesel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

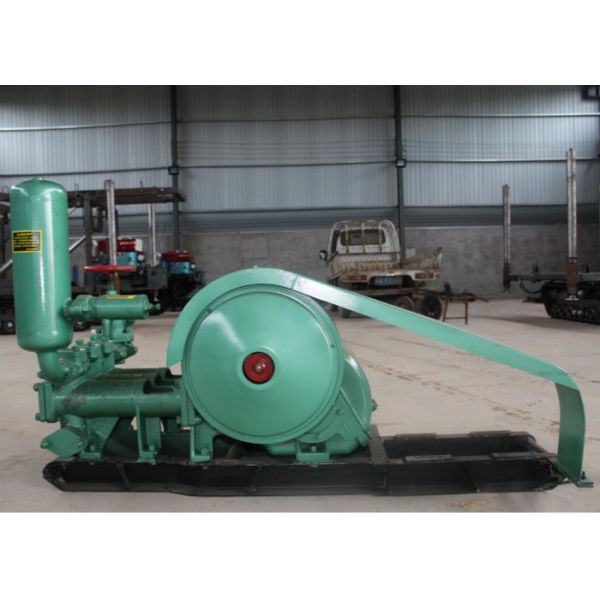

Economical Electric Mud Pump Well Drilling BW 250 For Submersible

Economical Electric Mud Pump Well Drilling BW 160 / BW200 / BW 250 For Submersible
Product Description

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy, stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in engine.


specification :


Model NO:BW160BW200BW250
Type

horizontal single

cylinder double action

reciprocating piston pum

horizontal type two

cylinder double action

pump

horizontal triplex

reciprocating single

acting piston pump

cylinder daimeter95mm80,65mm80,65,70mm
piston stroke85mm85mm
frequency of stroke165 times/min145 times/min200 times/min
flow rate160 l/min200;125 l/min250,166,200 l/min
pressure1.3mpa4,6mpa2.5,4,5,6,7mpa
power input5.88kw14.7kw/20hp22kw
diameter of suction pipe50mm65mm76mm
diameter of discharge pipe40mm37mm51mm
overall dimensions(L*W*H)1110*725*965mm1050*630*820mm1100*995*650mm
weight200kg300kg760kg
