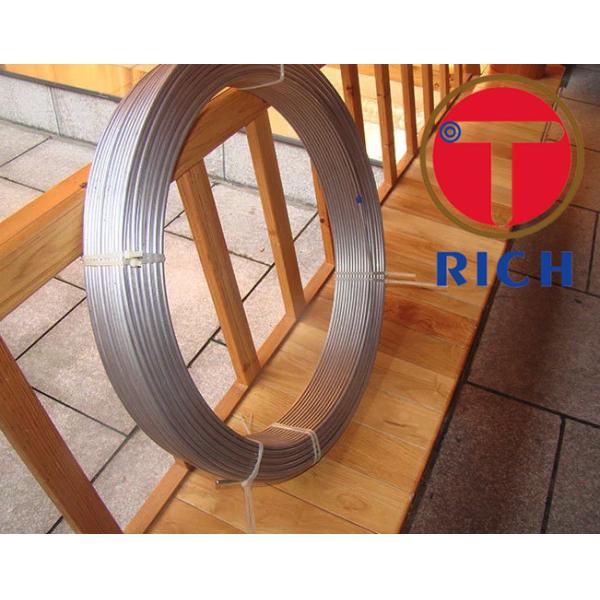

Astm A269 Capillary Stainless Steel Tube Coil For Electric Appliance Industries

ASTM A269 Capillary Stainless Steel Coil Tube

Size Range:

outer diameter :2.5-6mm

Wall Thickness: 0.2-1.5mm

Inner Bore Size of Coil:500-1500mm

The length can be fixed and coil length is up to 5000m

Example of physical Properties of steel pipe under Bright Annealing Condition:

Elongation Percentage: >55%

Surface Hardness: <170HV

Tensile Strength :>550N/MM2

Yield Strength :>195N/NM2

Coil tubes Specification Table

O.D mm W.T mm	3.0-4.0	4.01-6.00	6.01-8.00	8.01-10.0	10.01-12.7	12.71-19.05	19.05-25.4
0.30-0.40	√	√	√
0.41-0.50	√	√	√	√
0.51-0.60	√	√	√	√	√
0.61-0.70	√	√	√	√	√	√
0.71-1.00	√	√	√	√	√	√	√
1.01-1.20		√	√	√	√	√	√
1.21-1.50				√	√	√	√
1.51-2.0					√	√	√

Standard : ASTM A269/A249

Applications:

1. Instrument

2. Offshore oil

3.Petrochemical

4. Electric appliance industries

Our advantages:

1. We can make it longer

2. No matter how long each coil tube is , there will be no leakag

3.100% inspection ,pressure restistant and more reliable

4. Internal and external clean , reach food grade(Customers shall give prior notice)

5.Complete specifications , products of some specifications in stock

6. Pass FDA test

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

Tag:

welded steel pipe,

welding steel tubing

Characteristic: TEST:

Good concentricity Tension Test

Good surface quality Flaring Test

Good OD and ID tolerance Hardness Test

High Precision Reverse Flattening Test

Stable quality Hydrostatic or Nondestructive Electric Teat

Smooth Roughness

Product Tags:


*From:	Your email address is incorrect!
*To:	TORICH INTERNATIONAL LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Tube
Brand Name:	TORICH
Model Number:	ASTMA269
Certification:	ISO 9001,ISO 14001,TS 16949
Place of Origin:	China
MOQ:	1 Tons
Price:	negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000Tons/Years
Delivery Time:	30-35 Days
Packaging Details:	In wooden boxes
Product Name:	ASTM A269 Capillary Stainless Steel Coil Tube For Electric Appliance Industries
Key word:	Stainless Steel Pipes
OD:	2.5-6mm
WT:	0.2-1.5mm
length:	500-1500m
Payment:	L/C T/T D/P D/A
Materail:	tp304 tp310
Shape:	Round
