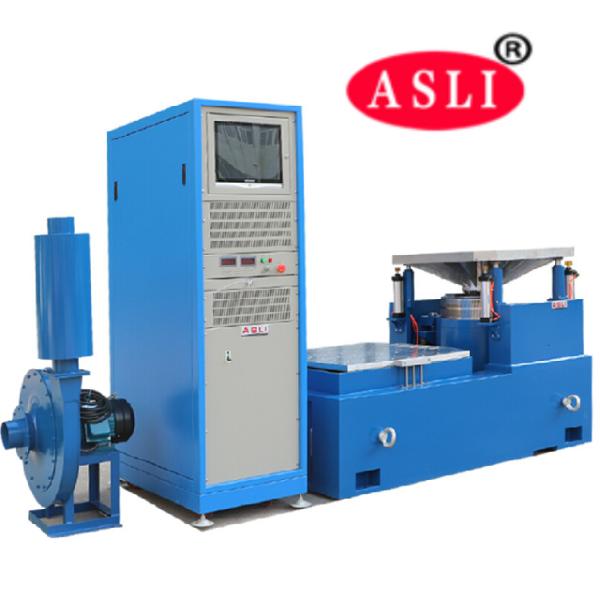

Vertical Random Vibration Test Equipment , Vibration Testing Machine For Rubber Plastic Parts

Vertical Random Vibration Test Equipment , Vibration Testing Machine For Rubber Plastic Parts

Product Description

Vertical Vibration Random Vibration for Rubber Plastic Parts is perfect for the vibration testing for the household goods, electronic products, car parts, and so on.

high frequency vibration tester can meet the testing standards such as MIL, ASTM, IEC, ISO,BS, JIS.

It have the big diameter moving coil, equipped with high strength direction guiding, so that can use all kinds of additional table to do different kind of parts and products testing, and can get good vibration transmissibility. The testers can easily to fulfill the small parts testing need, including the transportation simulating testing, integrating vibration testing, and the earthquake simulating testing.

SPECIFICATIONS FOR Vertical Vibration Random Vibration Test Machine
Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

Main Features

1) Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2) Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3) Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4) Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

6) New duct design and enhance the cooling effect.

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
