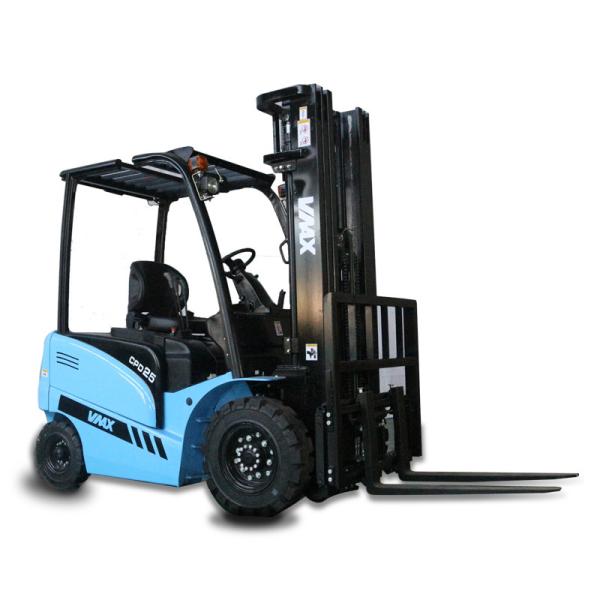

Name: 2T VMAX Four Wheel Electric Forklift Truck For Construction And Industrial Use
Brand: VMAX
Price: 1 USD

Home > Earth-moving Machinery >

2T VMAX Four Wheel Electric Forklift Truck For Construction And Industrial Use

Categories	Electric Warehouse Forklift
Brand Name:	VMAX
Model Number:	CPD20
Certification:	CE ISO
Place of Origin:	ANHUI,CHINA
MOQ:	1UNIT
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year
Delivery Time:	45 DAYS
Packaging Details:	bubble wrap
product name:	electric counterbalance forklift
Max. Lifting Height:	6000mm
Min. Lifting Height:	3000mm
Color:	red yellow
Power Souce:	AC Motor
Rated Loading Capacity:	2t
Fork Length:	1070mm
Fork Width:	120mm

Contact Now

Add to Cart

Company Info.

ANHUI VMAX TECHNOLOGY CO., LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

2T VMAX Four Wheel Electric Forklift Truck For Construction And Industrial Use

electric lift truck Quick Details

Brand Name:Vmax

Model Number:CPD20

Type:Powered Pallet Truck

Power Souce:AC Motor

Rated Loading Capacity:2000kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:120mm

Overall Dimensions:2349*1265*2125mm

Certification:CE ISO TUV GS BV

After-sales Service Provided:Engineers available to service machinery overseas

Color:per your request

Weight:4160kg

electric lift truck specification:

Characteristics
1	4-wheel AC Power Pneumatic Tire Electric Forklift				CPD20	CPD25
2	Capacity	at rated load center		kg	2000	2500
		at load center - distance		mm	500
3	Power	diesel, Gasoline / LPG, electric			electric
4	Tire Type	solid, pneumatic			pneumatic
5	Wheels (x = drive)		number front / rear		2x/2
Dimensions
6	Lift Height with standard two-stage mast (VM)			mm	3000
7	Free Lift Height			mm	140	140
8	Fork size		LengthWidthThickness	mm	1070x120x40	1070x120x45
9	Fork spacing (Min./Max.)		out-to-out	mm	240/1040	240/1040
10	Mast tilt angle		Forward / Backward	deg	6/10
11	Overall dimensions	length (to fork face)		mm	2349	2381
		width (standard)		mm	1265
		height	with lowered mast	mm	2040
			with extended mast	mm	4240
			to top of overhead guard	mm	2125
12	Turning radius (outside)			mm	2050	2100
13	Load distance (centerline of front axle to front face of forks)			mm	459	464
Performance
15	Speeds	Travel speed	loaded	km/h	12	12
16			empty	km/h	14	14
17		Lifting speed	loaded	mm/sec	310	300
18			empty	mm/sec	420	420
19	Gradeability		loaded/empty	%	10
Weight
20	empty	with minimum weight battery		Kg	4160	4360
Chassis
21	Tyre Size	Front, standard pneumatic tires			23x9-10-16PR
22		Rear, standard pneumatic tires			18x7-8-14PR
23	Wheel base			mm	1500
24	Tread width		Front	mm	1040
			Rear	mm	950
25	Min. Under-clearance (full load / no load )		at lowest point at mast	mm	85/105
26			at center of wheelbase	mm	120/140
Powertrain
27	Battery	Voltage		V	48
28		Capacity		AH	630/700	630/700
29	Electric motor	Drive motor output		kw/rpm	8/1300
30		Hydraulic motor output		kw/rpm	15/2200	15/2200
31	controller				American(USA CURTIS electric controller ) / American GE, GE/Italian SME AC controller
