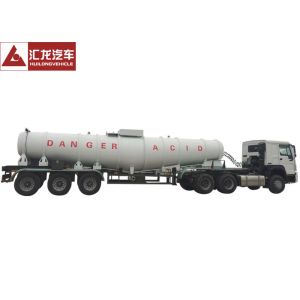

V Shape Chemical Transport Tanks Air Suspension Good Welding Seam

V Shape Chemical Transport Tanks Air Suspension Good Welding Seam

Description:

This is a V shape chemical tank trailer. The tank is designed for easy loading and discharging. The loading material is the concentrated sulfuric acid and it has the feature of strong oxidative. It will react with the aluminum, steel and form a dense coat on the surface of the aluminum or steel. This coat also protects the aluminum or steel to prevent further corrosion.

The sulfuric acid tank has a higher requirement about the welding. If there is welding defective like the welding crack, welding air pot, the sulfuric acid will corrosive the welding defects and cause leakage. What’s more, the sulfuric acid has the feature of water absorption. After it absorb the water in the air, it becomes more corrosive and damage the tank.

The running gear is air suspension type to provide better protection of the trailer. The speed limit is 80km/h.

Advantages:

1. Good welding seam, all seams are double checked by inspectors and the machines.
2. Stainless tank parts to prevent the corrosive when discharging.

Specifications:

Dimension
Overall Dimension	11800x2500x3000mm
Tare Weight	10500KGS
Tank
Shape	V shape tank
Total Volume	21000L
Tank Body Material	Carbon steel
Tank End Plate	Carbon steel
Compartment	Single compartment
Manhole Cover	Steel manhole cover
Bottom Valve	Stainless steel valve
Discharge Valve	Stainless steel valve
Trailer Chassis
Main Beam	Special design V beam
Axle	BPW axle
Landing Gear	JOST landing gear
Kingpin	JOST kingpin 2 inches
Suspension	Air suspension
Braking System	T30/30 air chamber, WABCO relay valve
Tire	12R22.5
Wheel Rim	9.0-22.5
Accessories	Tool box, spare tire carrier
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
