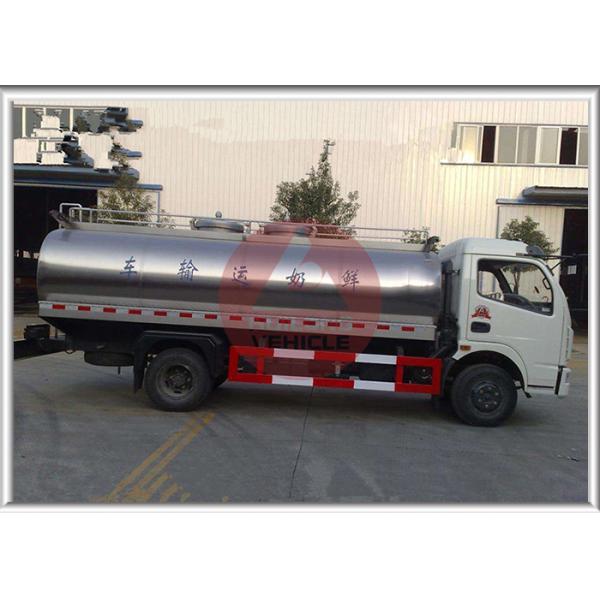

5 Ton Milk Tank Trailer 4×2 Tractor Stainless Steel Plate Insulation Layer

5 Ton Milk Tank Trailer 4×2 Tractor Stainless Steel Plate Insulation Layer

Description:

• Tank Body

The fresh milk transporter is also called milk tanker and liquid food tanker. The tank body is made of food grade stainless steel plate. The outer part of the tank body needs to be used as insulation layer to prevent the deterioration of fresh milk. The interior of the tank body should be smooth and without acute angle. Each milk tank is equipped with the cleaning device.

• Vehicle Performance

This fresh milk truck modified by the Dongfeng chassis is with strong power and stable performance. The tank body of the milk transportation truck is made of stainless steel plate. The drive mode of the truck is 4x2. The truck can load 5T fresh milk at a time.

Advantages:

• Stainless Steel Plate

Milk tanks are made of food grade stainless steel whose level of lead is lower than common stainless steel. The inner wall is clean and will not pollute milk.

• Insulation Layer

The tank body has two stainless steel layers. In the middle of the two-layer is an insulation layer with a heat preservation effect to keep the temperature of fresh milk.

• Extensive Usage

Many kinds of chemical raw materials, dairy products, oil products and liquid food can be transported.

Specifications:

Overall Dimension (mm)	5995×2000×2400
Tank Size(mm)	4010×1760×1260
Transport Medium	Milk
Density of Transport Medium(kg/m³)	820
GVW(kg)	7300
Curb Weight(kg)	2950
Rated Loading Capacity(kg)	5000
Volume of Tank(m³)	6
Approaching/Departure Angle(°)	19/15
Front/Rear Suspension(mm)	1032/1663
Front/Rear Tread(mm)	1506/1466
Fuel Type	Diesel
Chassis Technical Parameter
Chassis Brand Name	Dongfeng
Traction System	4×2
Transmission	5 forward gear, 1 backward gear
Tyre Specifications	7.00-16
Tire Number	6 (1 spare tire)
Wheelbase(mm)	3300
Axle Number	2
Axle Loading(Kg)	2920/4380
Passengers in Cab	3
Maximum Speed(km/h)	95
Gallery
