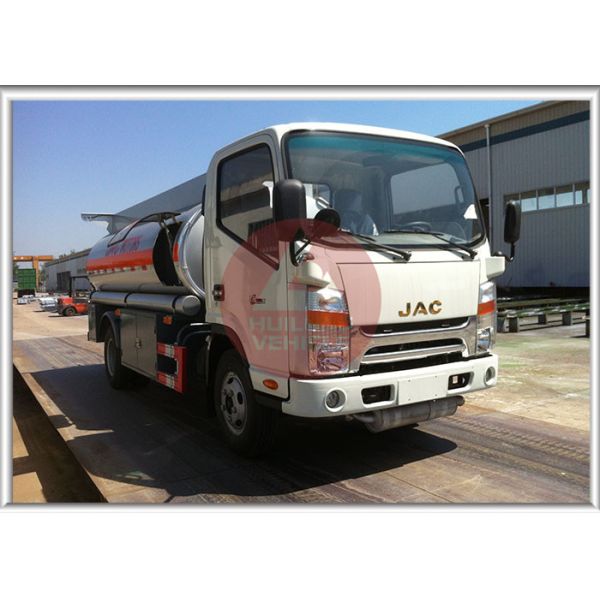

JAC Fuel Oil Truck 6000l Container Capacity 280hp Motor Power Seamless Tank

JAC Fuel Oil Truck 6000l Container Capacity 280hp Motor Power Seamless Tank

Description:

• Wide Application

The JAC refueling tank has great flexibility and is a veritable mobile tank truck. It can refuel cars, ship, construction and mining machinery applied in remote districts where there is no gas station, like outskirts, terminal, airport, rural road etc. The inconvenience that a variety of cars or equipments have to be refueled in the gas station is resolved. Both oil and non-oil products can be transported such as heavy oil, aldehyde, benzene etc.

• Seamless Tank

The tank is made by the advanced pressure vessel manufacturing equipment. Butt welding is applied to achieve the seamless forming.

Advantages:

• Breather Valve

Breather valve is installed on the top of the manhole cover to balance the interior pressure and the atmospheric pressure. When the oil level rises due to thermal expansion or refueling, the top valve plate will be opened (Inside pressure > Outside pressure 8Kpa). Contrarily, the bottom valve plate will be opened (Inside pressure < Outside pressure 3Kpa).

• Fiscal Gas Pump

The intelligent fiscal gas pump can be installed for option. It can calculate the fee and predict flow rate. The refueling record can be checked via the automatic accumulating system.

• Accessories

Two fire extinguishers, two petroleum pipelines and one static-free earth line are included in the truck.

Specifications:

Main Dimension	7200x2500x2600mm
Tare Weight	6500KGS
Truck Chassis
Chassis Brand	JAC
Driving Mode	4x2
Cabin	JAC single row cabin, with A/C, USB
Max Driving Speed	90km/h
Engine Horse Power	280HP
Gearbox	Manual gear box, 6 speed
Fabrication Part
Tank Body	6000L, by carbon steel Q235
Tank Parts	Aluminum alloy manhole cover Aluminum alloy discharge valve Aluminum alloy bottom valve With pump and fuel dispenser
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
