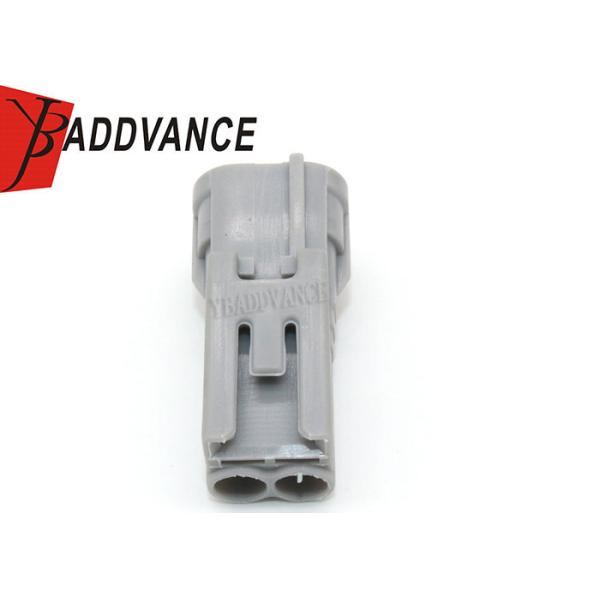

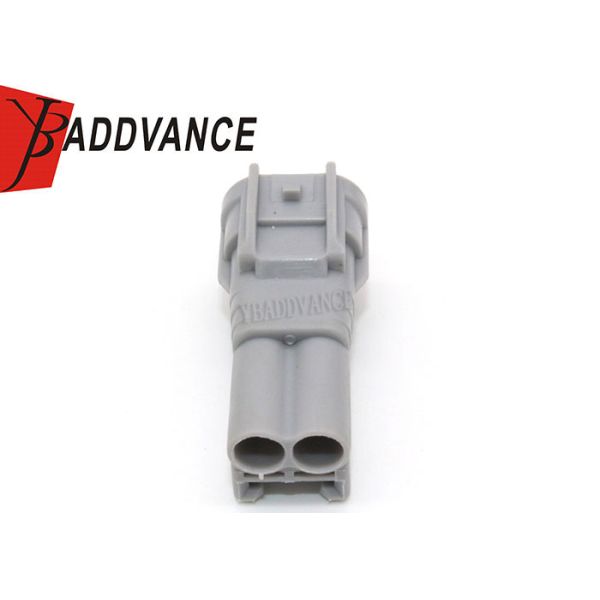

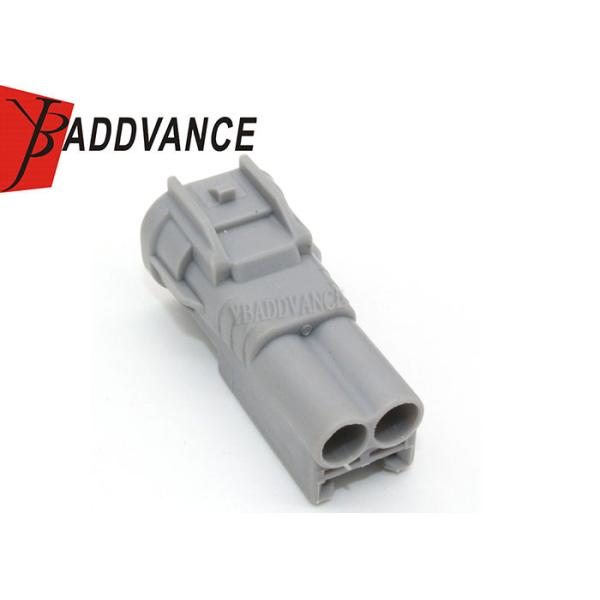

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Categories	Sumitomo Sealed Connectors
Brand Name:	YBADDVANCE
Model Number:	6188-0266
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 UNITS
Price:	USD 0.5-0.7 Per set with crimp terminals
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Sumitomo Number:	6188-0266
Series:	TS Sealed Series
Material:	PBT
Color:	Gray
Sealed/Unsealed:	Sealed
Male/Female:	Male
Number of Way:	2 way
Mating parts:	6189-0249
Leak current:	100μA Max.
Insulation resistance:	100MΩ Min.

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Product Description

2 Pin Sumitomo 6188-0266 Male Connector Fits wires from .5mm - 1.25mm (16 - 22 AWG).

It's come with Tough plastic housing with inner seal, plus wire seals and crimp terminals.

Terminals:

2.3mm 8100-0457
2.3mm 8100-1340
2.3mm 8100-0458
2.3mm 8100-1007

Wire seals:

2.3mm 7165-0842
2.3mm 7165-0349
2.3mm 7165-0395
2.3mm 7165-0351

Specification

Keywords	Sumitomo 2 pin male connector
Original Number	6188-0266
Type	Waterproof connector
Male/Female	male
Material	PBT
Series	TS 090 Series 2.3mm(090)
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max.
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 50kPa Min. after durability tests 30kP
Quality Control	All goods will be 100% inspected before shipment
Color	Gray Color
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
