UTM / universal testing machine Automatic Computerized Universal Testing Machine

Automatic Computerized Universal Testing Machine Utm Equipment Servo Control

universal testing machine-100kn

1. Application

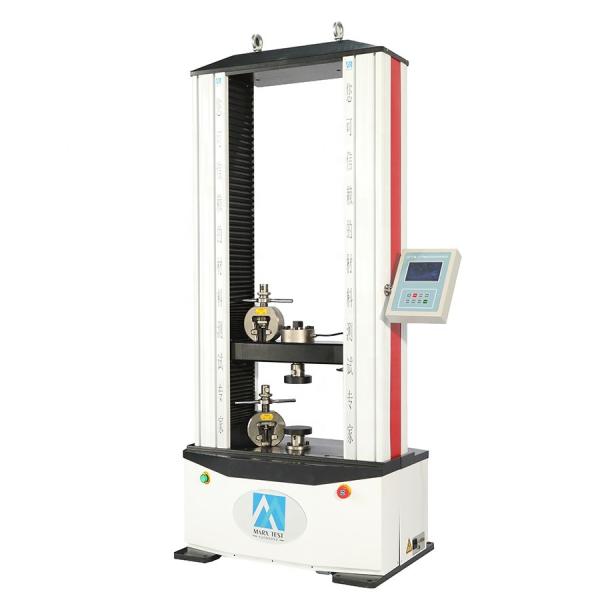

ETM Series Floor-standing Electromechanical Test Machine features two-column load frame that used in medium duty tensile,compression, and bending test applications for metallic,non-metallic, and composite materials. Long travel extensometer or video /non -contact extensometer can be used for the machines

This testing machines is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.

2. Test capability of machine and relevant Standard:
ASTM E8 - 16Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing

ASTM D638

Automatic balancing system
Working principal: servo motor – synchronous belt – reducer – lead screw – lower pull rod.
Servo motor has advantage of stable start and stop, avoiding any shock on specimen.
Reducer is worm-wheel type with self-lock function. Even power off, loading can be maintained.
For unexpected power outage, automatic balancing system can work with UPS to hold loading more than 20 hours. Manual loading is available to unload and remove specimen.

Technical Parameters

Model	ETM-10kN	ETM-20kN	ETM-30kN	ETM-50kN	ETM-100kN
Capacity/ Load force	10kn	20kn	30kn	50kn	100kn
Load accuracy	Class 1 (class 0.5 optional)
Load range	1% - 100% FS (0.4% - 100% FS optional)
Testing Speed	0.001 - 1000 mm/min
Crosshead travel	1000mm	1000mm	1000mm	1000mm	1000mm
Effective tensil space	700mm	700mm	700mm	700 mm	700mm
Effective test width	400mm	400mm	450mm	450 mm	500mm
Load Resolution	1/300000
Deformation Measure Range	1%～100% FS
Deformation accuracy	≤±0.5%
Power Supply	AC 220V±10%, 50Hz (can be customized as customer request)

Clamping Fixture Configuration
Tensile Grips		Manual Wedge Fixture or Hydrualic Automatic Clamping Fixture
Round specimen clamping range		Φ4-9,9-14,14-20mm
Flat specimen clamping range		0-7,7-14,14-20mm
Compression Plate		Φ170 x 170 mm (can be customized as customer request)
bending fixture		3-point bending fixture (4-point bending fixture is optional)
Electronic Extensometer		YUU10/50

FAQ

1. Are your company a trading one or a factory?

Factory + trading company (integration), 21 years focusing on test instruments field,

5 years exporting experience.
2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
14 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.

Product Tags:


*From:	Your email address is incorrect!
*To:	SUZHOU KING ENTER IMPORT AND EXPORT CO., LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Electromechanical Universal Testing Machine
Place of Origin:	China (Mainland)
Brand Name:	OEM / KINGENTER
Model Number:	ETM universal testing machine
Price:	US $2,500-6,500 / Sets \| 1 Set/Sets (Min. Order)
MOQ:	1 Set/Sets
Certification:	ISO CE SGS
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	150 Set/Sets per Month
Delivery Time:	10 days
Packaging Details:	plywood packing
Product name:	universal testing machine
Application:	metal, steel wire, bar, plate, rubber, plastic etc.
crosshead travel / tensile space:	1000mm / 700mm
Power supply:	AC220V 50HZ can be customized
Weight:	250kg
Standard:	GB/ISO/ASTM/JIS/DIN,ASTM,ISO
Warranty:	12 months
Motor:	Panasonic sevor motor,AC motor,Servo motor
Accuracy:	1 grade/0.5 grade Universal Tensile Testing Machine
Test speed:	1~500 mm/min Selectable,10~200mm/min adjustable,0.5~1000mm/min(control by keyboard inputing)
