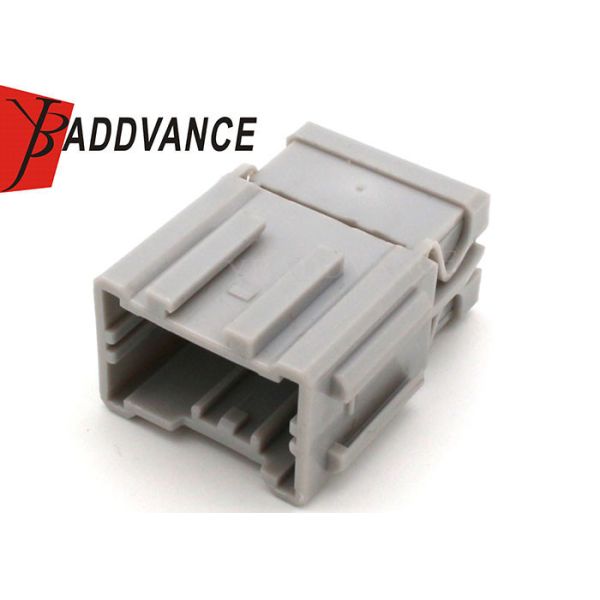

Name: 8 Pin 8 Way Sumitomo HD Series 23090 Grey Male Connectors 60980248
Brand: YBADDVANCE
Price: 0.5 USD

8 Pin 8 Way Sumitomo HD Series 2.3(090) Grey Male Connectors 6098-0248

Categories	Sumitomo Automotive Connectors
Brand Name:	YBADDVANCE
Model Number:	6098-0248
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 UNITS
Price:	USD 0.5-0.7 Per set with crimp terminals
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Leak current:	3mA Max.
Insulation resistance:	100MΩ Min.
Gender:	Male
Keywords:	8 Pin male connector
Number of Positions:	8 Pin
Materials:	PBT
Number of Contact:	8
Number of Rows:	2

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

8 Pin 8 Way Sumitomo HD Series 2.3(090) Grey Male Connector 6098-0248

Product Description

It's 8 pin male unsealed connector grey color with crimp terminals can be supplied by YBADDVANCE.

This connector is used highly on Japanese cars and motorcycles.

1 X Male housing

8 X Male Terminals

This connector with the following male terminal.

8230-4282 Japan 8230-4272
Terminals Fit wire size .5 - 1.3 mm (16-20 AWG)

Specification

Mounting	Cable Mount
Housing Color	L.Gray
Contact	Termination Crimp
Gender	Male
Housing Materials	PBT
Number of Rows	2
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max.
Leak current	3mA Max.
Insulation resistance	100MΩ Min.
Number of Contact	8
Quality Control	All goods will be 100% inspected before shipment
Series	HD 090 series
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures
