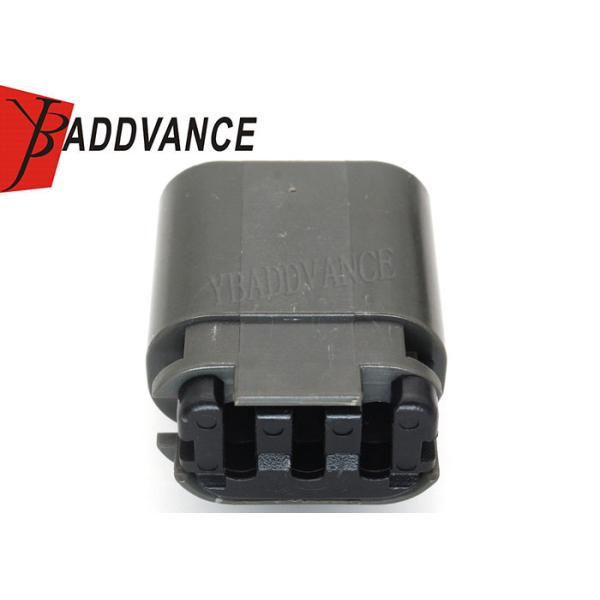

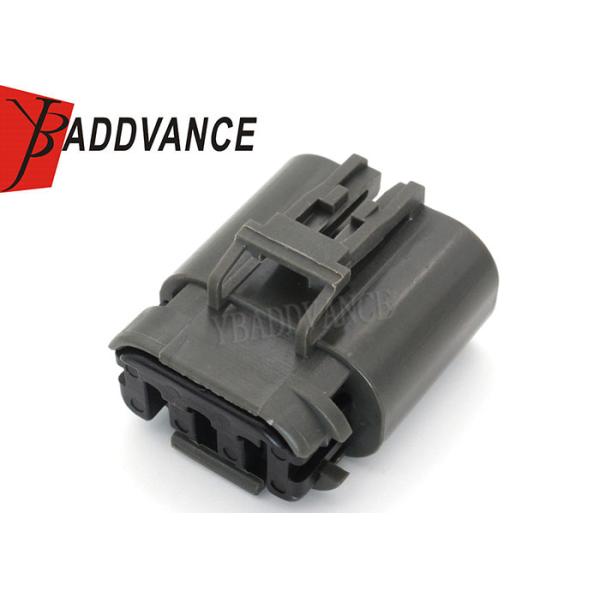

3 Pin Female Plug Ignition Coil Pack Connector 7223-1834-40 Fit For Nissan 300ZX Z32
Description
YBADDVANCE 3 Hole female connector is fit for Ignition Coil Pack and O2 Oxygen Sensor and 58 Connectors W Type Housing 3P Female come with the following kits
1 X female Connector Housing
3 X Wire seals
3 X female crimp terminals
1 X black lock
Specification
Item name | 3 Pin Ignition Coil Pack Connector |
| Part Number | 7223-1834-40 |
| Application | For Nissan 300ZX Z32 |
Wire Size | 16-22AWG |
Operating Temperature range | -40~125 deg.C |
Insulation resistance | 100M Min. |
MOQ | 100 units/lot |
| Tab Width mm(inches) | 2.8(110) |
| Design Tooling | Sending us samples or drawing to design it |
| Delivery Time | About 5-8 work days |
| Sealed/Unsealed | sealed |
Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Number of way | 3 way |
| Color | Gray |
| Housing Material | Nylon66 |
| Number of Row | 1 Row |
