DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style

Categories	Deutsch Automotive Connectors
Brand Name:	YBADDVANCE
Model Number:	DT04-2P-E005
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 units
Price:	Negotiation
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Gender:	Male
Martial:	PBT/PA66
Color:	Black
P/N:	DT04-2P-E005
Way:	2 hole
Feature:	Waterproof
HS code:	8536909000
Type:	2 way deutsch connector

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

DT04-2P-E005 2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector

Description

2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector

Height : 46.18 mm

Width : 17.02 mm

Length : 17.15 mm
Centerline (Pitch) : 5.46 mm

Wire Gauge Range: 20 AWG to 14 AWG
Required Wedgelock: W2P

Modification: End Cap

Connector Style: Receptacle

Amperage Rating: 13

The sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.

Specification

Item name	DT04-2P-E005 2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector
P/N	DT04-2P-E005
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

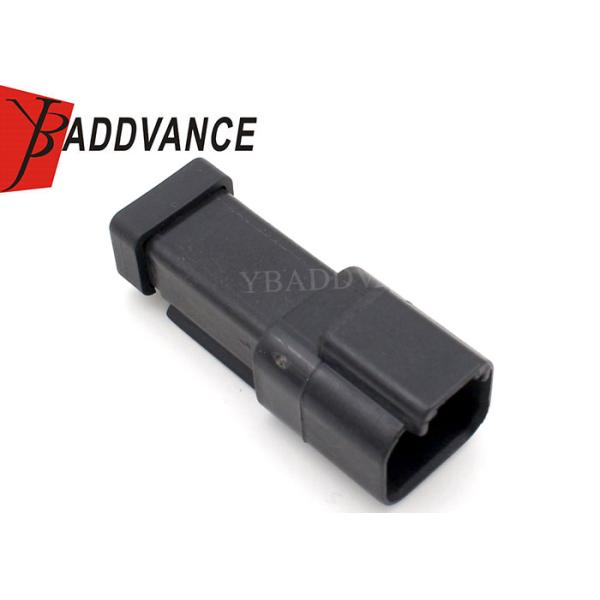

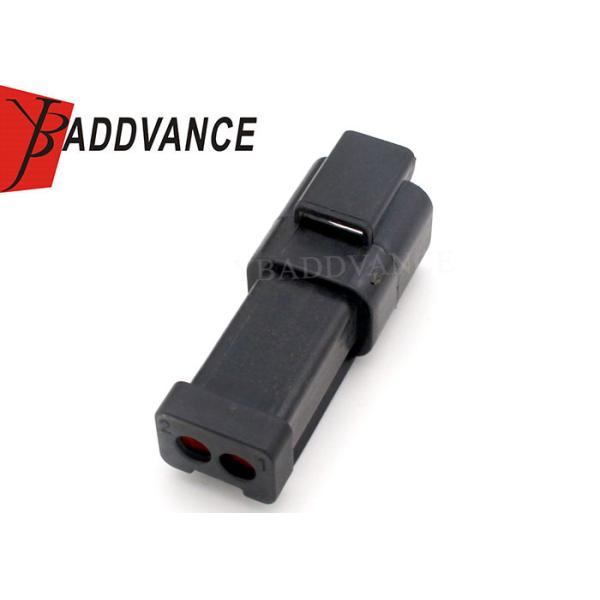

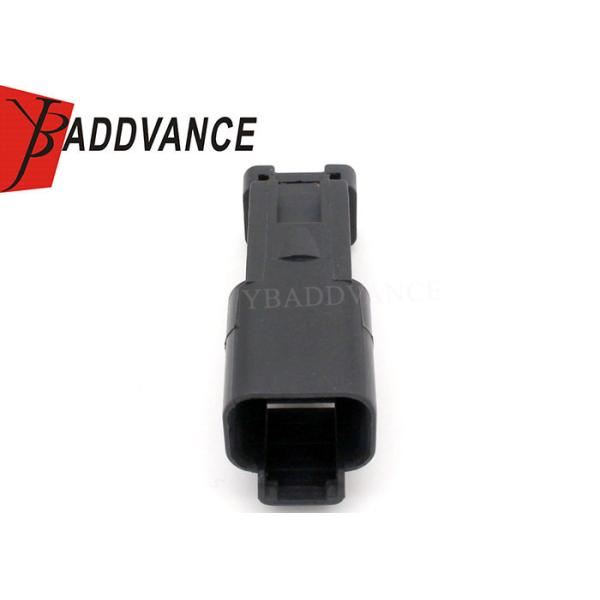

Product Picture Details
