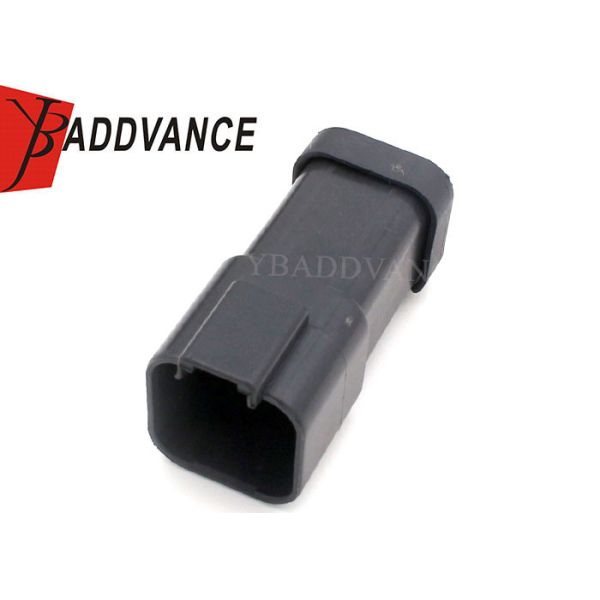

DT04-6P-E005 Deutsch Automotive Connectors / 6 Pin Male Deutsch Connector

Categories	Deutsch Automotive Connectors
Brand Name:	YBADDVANCE
Model Number:	DT04-6P-E005
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 units
Price:	Negotiation
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Gender:	Male
Martial:	PBT/PA66
Color:	Black
P/N:	DT04-6P-E005
Way:	6 hole
Feature:	Waterproof
HS code:	8536909000
Type:	Deutsch connector
WARRANTY:	1 year
PLACE OF ORIGIN:	Shaanxi,China

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector

Description

6 Pin Male Deutsch DT Series Receptacle Connector

Height : 47.45 mm

Width : 24.69 mm

Length : 20.83 mm

Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 4.5 mm

Wire Size: 14, 16, 18, 20
Required Wedgelock: W6P

Series : Deutsch CAT DT Series. Meets Caterpillar Specifications.

6 circuit receptacle housing with protective end cap.

It including the male wedge and pins.

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.

Specification

Item name	DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector
P/N	DT04-6P-E005
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles
