12 Pin Deutsch Automotive Connectors / Deutsch DTM Series Connectors DTM06-12S ATM06-12S

12 Pin Female DTM Series Mini Deutsch Connectors DTM06-12S ATM06-12S

Description

12 Hole Female Sealed Grey DTM Series Deutsch Connector

2 Row , 12 way

Series : DTM-Series
Configuration : 12 Way Receptacle Housing + 1 Wedgelock+12 terminals +12 wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature Range: -55°C to 105°C

Height : 15.24mm

Width: 40.01mm

Length : 1.185 in

The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.

The DTM connector line was developed to fill the need for lower amperage, multi-pin connectors.

Contact insertion and removal does not require any special tools.

Specification

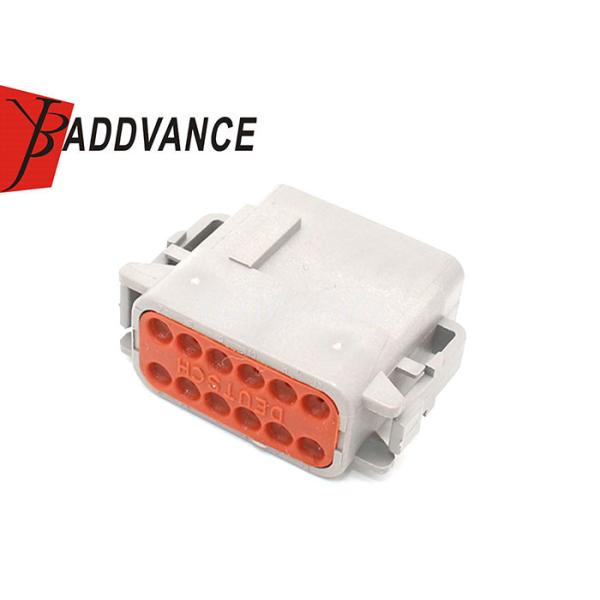

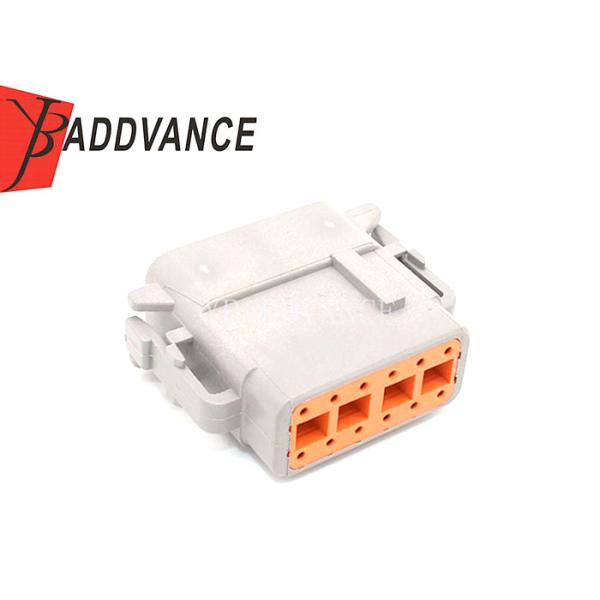

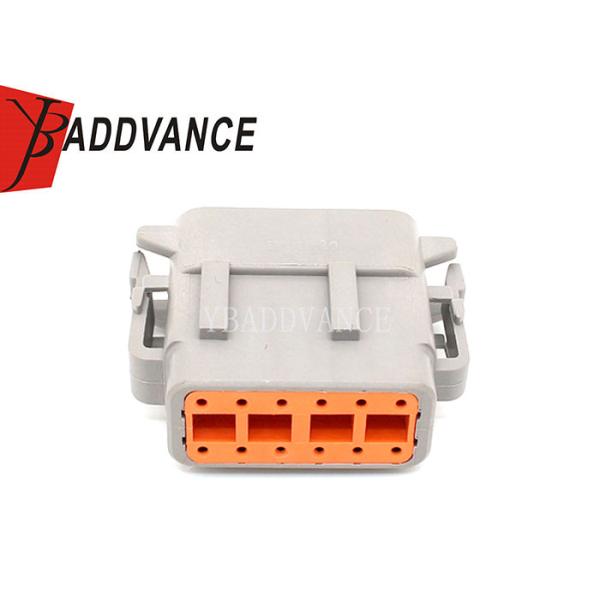

Product Picture Details

Congratulations! You've found the professional supplier in china.

Xi'An YingBao Auto Parts Co.,Ltd is a professional manufacturer of electrical automotive connectors.Our facility is also capable of making wiring harnesses.We strongly stress on making only the highest quality connector.

Our connector brand is YBADDVANCE to replace for SUMITOMO,,YAZAKI,TYCO AMP BRAND,BOSCH,FURUKAWA,DEUTSCH AND SO ON......

Another of our business line include fuel injector repair service kits such as micro basker filters, o-rings, pintle caps, rubber seals, and grommets.

We are the supplier to most of the GB and Walker products.Our objective is to provide the highest quality parts for reasonable price. We also make sure to have quick turnaround time to complete your order.
