Wastewater Treatment Wedge Wire Mesh Screen Anti - Corrosion 1.0 Mm Slot Opening

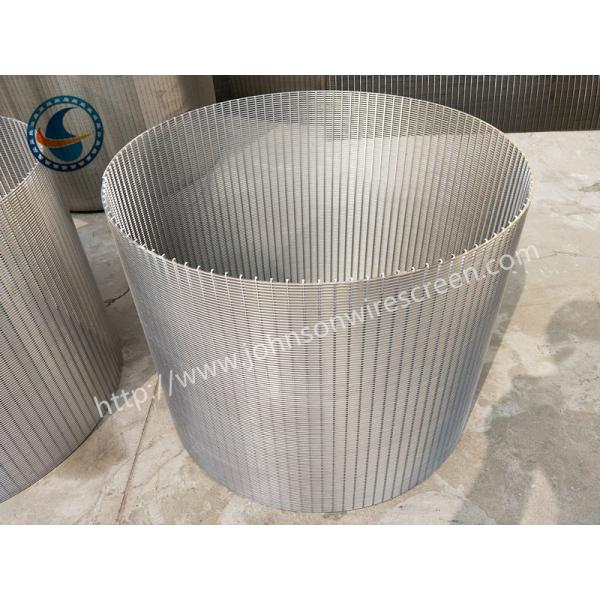

Stainless Steel 630mm Diameter Wedge Wire Screen For Wastewater Treatment

Wedge wire screen tube also called round slot tube.

It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wedge wire screen tube is composed of working profile and support profile.

It is produced on an automotive machine.

The support profiles are placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Material: Stainless Steel 304 ,316L etc.

Diameter:29-1300mm

Slot size (mm):0.5, 0.63, 0.75, 1.0,1.5mm in usual

Length: 2.9m or 5.8m in usual to fit container

End connection:male/female threaded couplings Or welded rings/plain beveled ends

According to the surface of the wedge wire screen tube

There are two types of wedge wire screen tube seen from the surface.

One is the normal types, which has continuous and regular angles on the edge.

It is economical, which is suitable for the applications where the accuracy is not very strict.

The other type is the perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.

Contact me:hengyuan1@aphywire.com Skype:songcc0209

---------------------------------------------------------------------------------------------------

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen, screen nozzle /water and gas strainer, sieve plate, slot mesh, ARC screen,header and hub laterals &hub radial lateral etc.

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
