| Categories | Auxiliary Equipment |
|---|---|
| Brand Name: | Reliable |
| Model Number: | SPAL-800G |
| Certification: | ISO SGS CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15 sets per month |
| Delivery Time: | 30-45 working days |
| Packaging Details: | Wooden package |
| Type: | SPAL-800G |
| Crushing chamber: | 42*38*64mm |
| Capacity: | 450KG/H |
| Power: | 1.1kW/1.5Hp 3Φ |
| Application: | Waste Plastic material |
| Net Weigt: | 47kg |
Air Drive Chemical Grain Powder Pneumatic Vacuum Feeding Air Conveyor Auxiliary Equipment

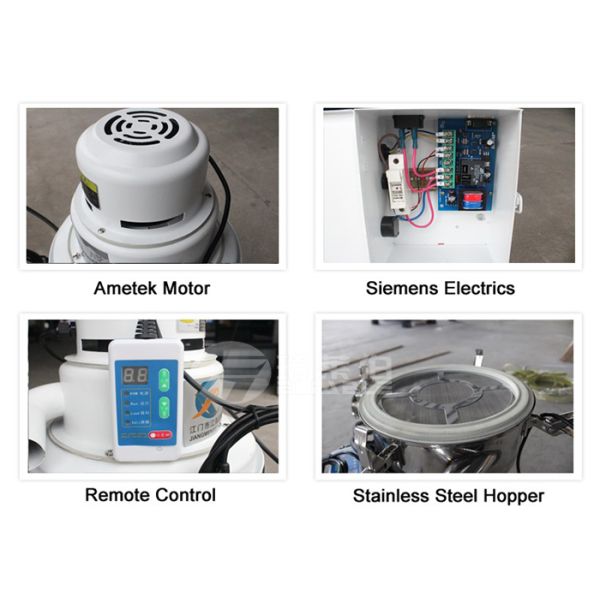

Feature ●Main machine separated from the hopper,easy and safe to operate. ●Independent filter for easy cleaning. ●Stainless steel hopper. ●Microcomputer controlled. ●Alarm for overload and lack of material. ●Induction high-pressure pump of low noise and long service time for SPAL-800G. |
Technical parameter ●The parameters of the conveying capacity and suction lift are educed from tests on ABS. The actual parameters may be different due to the differences of the specific gravity and the shape of the material,the conveying distance and height,the speciality of pipeline and the setting of parameters. ●Heat-resistant(200℃)pipes should be used when conveying hot material. |
| Model | SPAL-800G | SPAL-800GN | |
| Motor | Type | induction | induction |
| Specication | 1.1kW/1.5Hp 3Φ | 1.5kW/2.0Hp 3Φ | |
| ( kg/h ) Conveying capacity | 450 | 500 | |
| m ) Loading distance | 4 | ||
| (mm/H2O)Staic wind pressure | 1800 | 2400 | |
| (L)Hopper volume | 9 | 9/12 | |
| (mm ) Conveying tube inner dim. | Φ38 | ||
| (mm ) Attached hoses | Φ38mm*4m 2pcs | ||
| ( cm) Dimensions | Main frame | 42*38*64 | |
| Hopper | 45*32*45 | ||
| (Kg ) Net weight | Main frame | 47 | |
| Hopper | 7 | ||
|
