40 * 5 Serrated Metal Steel Grating , ISO 9001 Industrial Floor Grates
Serrated Metal Steel Grating Description:
Anping Tiantai Steel Product Co. Ltd. is a professional enterprise
in R & D., design, steel grating, SMC grating field. With
innovative and pragmatic, scientific developing philosophy,
following the criterion of ISO9001, it provides steel grating,
stair tread, compound steel grating, fiberglass grating, drainage
pit/trench cover, railing & stanchion, etc. It products are widely
used in petroleum, chemical industry, environmental protection,
power plants, pharmaceutical, printing and dyeing, brewing water
supply and drainage, transportation and other industries.
With its ten years of professional management experience and
production in press welding steel grating, it is one of the few
enterprises who have the technology of flat steel and galvanized
steel grating in the industry. The plentiful resources, skilled
team, and high level of management, make it be the fastest
developed, most potential grating products supplier.
Serrated Metal Steel Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Serrated Metal Steel Grating Standards:
Grating | Material Standard | HDG | Handrail Standard |
| YB/T4001-2007 | GB704-88 | GB/T13912-92 | 4053.3-93 |
| ANSI/NAAMM | ASTM (A36) | ASTM (A123) | |
| BS4592-1995 | BS4360 (43A) | BS729 | BS6399/BS6180 |
| AS1657-1992 | AS3679 | AS1650 | 1650-1985 |

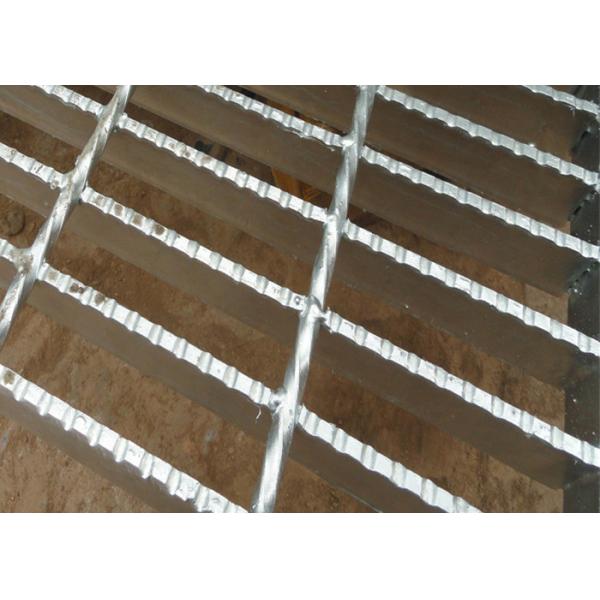

Serrated Metal Steel Grating Picture:
|
