| Categories | Cold Climate Air Source Heat Pump |
|---|---|
| Brand Name: | Yushen |
| Model Number: | SLNA-009U(P) |
| Certification: | CCC, ISO, CQC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/day |
| Delivery Time: | 1-2weeks |
| Packaging Details: | Reinforced Carton box with wooden tray |
| Key word: | Home Air Source Heat Pump |
| Compressor capacity: | 3HP |
| Function: | Cooling and heating |
| Norminal capacity: | 9Kw |
| Suitable working conditions: | -25C~+45C |
| Electricity: | 220V-3N-50hz |

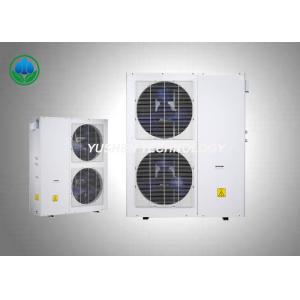

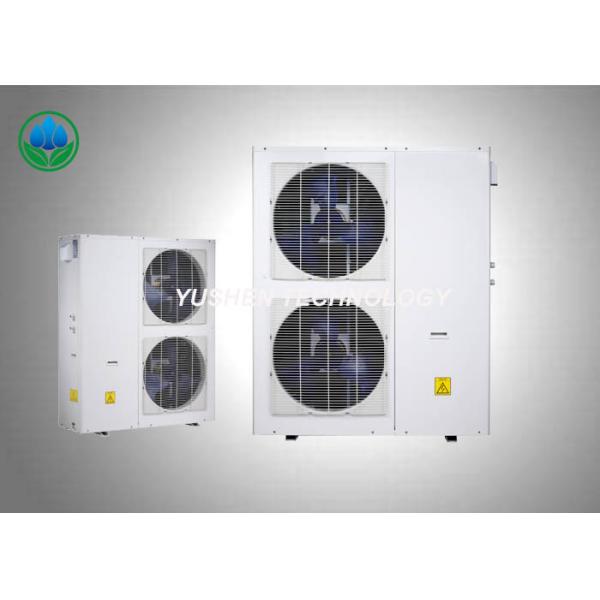

Cold Climate Air Source Heat Pump for Underfloor Heating Coil with Water pump
Yushen Products Advantages
1. Yushen ASHP could work in untra low temeprature cold climate -25C
2. Jet Booster compressor No decay in heating in low environmental temperature
3. long heating time and less defrosting time,35% more powerful than other products
4.Automatic testing line,100% finished products testing
5. More than 6 million M2 heating area project cases all over the different latitude area.
Parameter
a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity
b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity
c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃
| Model | SLNA(B)-009U(P)code name.pdf | |||
| Compressor capacity | 3HP | |||
| Function | Heating and Cooling | |||
| Data | Heata | Nominal capacity | KW | 5.8 |
| Input power | KW | 2.52 | ||
| COP | / | 2.3 | ||
| Heating IPLV(H) | 2.53 | |||
| Coolb | Nominal capacity | KW | 6.5 | |
| Input power | KW | 2.6 | ||
| COP | / | 2.5 | ||
| Cooling IPLV(C) | 2.7 | |||
| A7W35c | KW/COP | 9.2/4.10 | ||
| A2W35 | KW/COP | 8.0/3.6 | ||
| A-7W35 | KW/COP | 5.9/2.7 | ||
| A-15W55 | KW/COP | 5.0/1.90 | ||
| A-20W45 | KW/COP | 4.5/1.95 | ||
| Max. running currency | A | 18 | ||
| Compressor quantity | set | 1 | ||
| Refrigerant/charging quantity kg | / | R404A/2.2 | ||
| Air blow type | / | Side | ||
| Water pipe diameter | inch | G1〞 | ||
| Rating flow | m³/h | 1.6 | ||
| Water side pressure loss | kPa | ≤35 | ||
| Noise level | dB(A) | 59 | ||
| Overall dimensions(L×W×H) | mm | 1087×435×901 | ||
| Weight | kg | 70 | ||
