| Categories | Precision Steel Tube |
|---|---|
| Brand Name: | TORICH |
| Model Number: | GOST9567 |
| Certification: | ISO9001, ISO14001, TS16949 |
| Place of Origin: | ZHEJIANG, CHINA |
| MOQ: | 500KG |
| Price: | NEGOCIABLE |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000Tons per Year |
| Delivery Time: | 30-45 work days |
| Packaging Details: | in standard seaworthy packing. |
| Product name: | Cold Drawn Seamless Precision Steel Tube GOST9567 for Automative Parts |
| Keyword: | Cold Drawn Seamless Precision Steel Tube |
| Material: | 10, 20, 35, 45, 40X |
| Type: | Seamless |
| WT: | 1mm~15mm |
| OD: | 6mm~168mm |
| Length: | max12000mm |
| Usage: | Automobile, Machinery Engineering, Autoparts etc |
| Company Info. |
| TORICH INTERNATIONAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

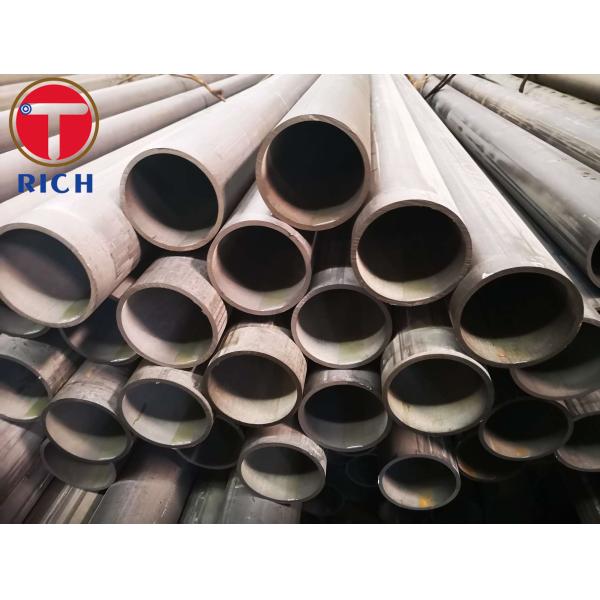

Cold Drawn Seamless Precision Steel Tube GOST9567 for Automative Parts
TORICH is professional to manufacture Cold Drawn Seamless Precision Steel Tube accordingto GOST9567 which covers both
seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can be furnished
in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
Standard | GOST9567 Precision steel tubes |
Material | 10, 20, 35, 45, 40X, 30ХГСА |
Size | WT: 1-15mm; OD: 6-168mm; Length: max 12000mm |
Manufacturer | Pipes shall be made by the Cold Drawn seamless process. |
Applications | For Automobile, Machinery Engineering, Autoparts etc. |
Test | Tension Test, Flaring Test, Flange Test, |
Chemical Composition
Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P | Cu |
10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
45 | 0.42-0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
30ХГСА | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.25 | - |
Mechanical Properties
Steel Grade | Tensile strength, N/mm2 (min) | Yield strength, N/mm 2 (min) | Elongation, %(min) |
10 | 343 | 206 | 24 |
20 | 412 | 245 | 21 |
35 | 510 | 294 | 17 |
45 | 589 | 323 | 14 |
40X | 618 | - | 14 |
30ХГСА | 491 | - | 18 |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring
Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield
Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a
perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate
longitudinal and transversal defects.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and
solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is
30-60 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it
free or extra ?
A: Yes, we could offer the sample for free charge but need pay the
cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
|
