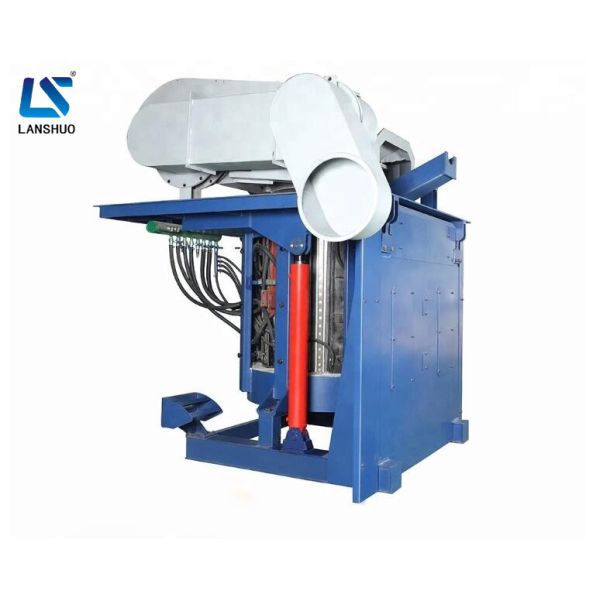

3T Capacity 2000KW Large Melting Furnace For Iron Aluminum Copper Scrap

KGPS-3T 2000KW Large capacity melting furnace for Iron Aluminum Copper scrap

1. Advantage of Steel Shell Melting Furnace:.

1. Turn on & turn off the smelter easily,and power failure will not affect the service life of electric furnace.

2. Adopt constant power to control the circuit,maintain constant power while melting and keep faster melting rate.

3. Set up over voltage, over current and water deficient protector, and run safely.

4. The motherboard adopts CAD technology, integrated circuit board,low-fault-rate,easy-manipulating, effortless maintenance.

5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.

6. Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, zinc,steel, iron, stainless steel etc.
2. Technical Parameter of Steel Shell Induction Melting Furnace:

Furnace Model	Rated Capacity	Rated Power	MF Frequency	Power Input Voltage	MF Output Voltage	Melting Time	Electricity Consumption	Transformer Capacity Required
Furnace Model	T	KW	KHZ	V	V	Minutes/T	KWH/T	KVA
KGPS-250	0.25	250	1	380	750	65	680	300
KGPS-400	0.5	400	1	380	1600	65	680	400
KGPS-500	0.75	500	1	380	1600	65	650	600
KGPS-700	1	700	0.7	660	2400	60	640	800
KGPS-1000	1.5	1000	0.7	660	2400	60	640	1000
KGPS-1400	2	1400	0.5	750	2400	65	640	1800
KGPS-2000	3	2000	0.5	950	3200	65	640	1800
KGPS-3000	5	3000	0.5	950	3200	70	620	2500
KGPS-4000	6	4000	0.5	950	3600	70	600	3150
KGPS-4500	8	4500	0.3	950	3600	70	580	4000
KGPS-6000	10	6000	0.3	950	3600	65	550	5000
KGPS-8000	12	8000	0.3	950	5000	60	520	6300
KGPS-9000	15	9000	0.3	950	5000	70	500	8000

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

5. Customer Center:

Product Tags:


*From:	Your email address is incorrect!
*To:	Zhengzhou Lanshuo Electronics Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Large Melting Furnace
Brand Name:	Lanshuo
Model Number:	KGPS-3T/2000KW
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	USD 15000-80000 / set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time:	10-15 working days after receiving advanced payment
Packaging Details:	KGPS induction melting furnace is packed in wooden boxes
Type:	Induction Melting Furnace
Voltage:	6*750v, 50HZ
MF Frequency:	500HZ
Medium Voltage:	1480v Phase
DC Voltage:	990V Phase
DC Current:	1010A Phase
Rated Temperature:	1800°c
Color:	Customizable
Melting Material:	Gold, Silver, Copper, Iron And Aluminum Etc
Rated Power:	2000KW
Rated Capacity:	3T
