| Categories | Stainless Steel Pressure Regulator |
|---|---|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | AFK |
| Model Number: | R13 |
| MOQ: | 1-9 Pieces |
| Price: | Negotiable |
| Certification: | CE |
| Warranty: | 1 Year |
| Type: | Single-stage |
| Material: | 316L |
| Application: | Gas LPG Regulator |
| Media: | helium natural gas |
| Screw thread: | 1/4'' 3/4'' npt female thread |
| Weight: | 1.35kgs(with Gauges)/0.9kg(no Gauges) |
| Input pressure: | 500 3000psi |
| Selling Units: | Single item |
| Single package size : | 17X17X17 cm |
| Single gross weight: | 2.5 kg |
| Package Type: | PP box+color box+export carton |
| Company Info. |
| Shenzhen Wofly Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
--Maximum Inlet Pressure:500,1500psig
--Outlet Pressure Ranges:0~15, 0~25, 0~75,0~125PSIG
--Safety test pressure: 1.5 times maximum inlet pressure
--Operating Temperature: 40°F to +165°F / -40°c to 74°c
--Leakage Rate Against Atmosphere:2*10-8atm cc/sec he
--Cv value 1.8
Material:
--Body :316L, Brass
--Bonnet: 316L. Brass
--Diaphragm:316L
--Strainer: 316L(10 μm)
--Seat:PCTFE,PTEE
--Spring: 316L
--Plunger valve core:316L

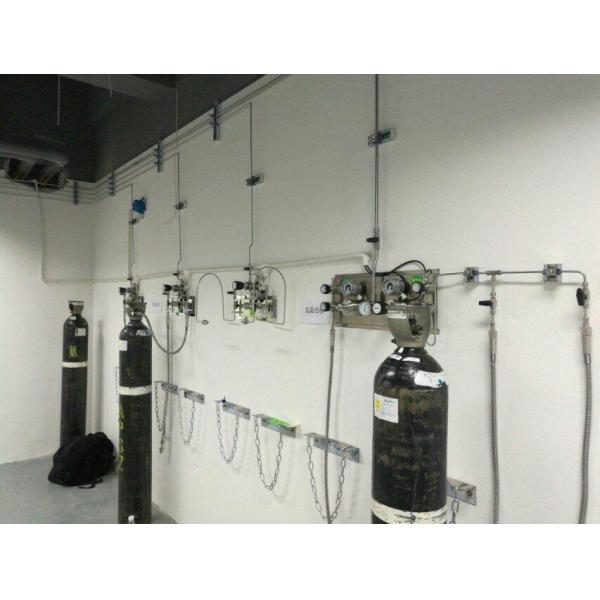

Typical Applications:
--Labotary
--Gas Chromatography
--Gas laser
--Gas bus-bar
--petro-chemical industry
--Test equipment

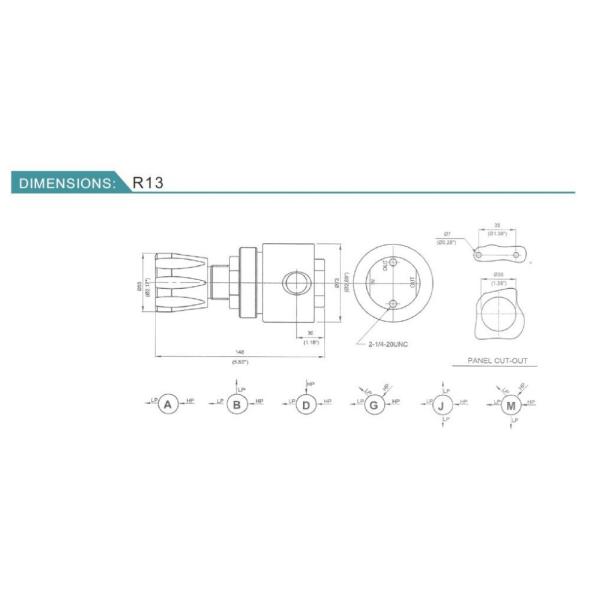

Item | Body material | Body ports | Inlet pressure | Outlet pressure | Pressure Gauge | Inlet connection | Outlet connection | Option |
R13 | L | B | E | H | G | 04 | 04 | P |
L:316L | A | E:1500psi | H:0-125psi | G:Mpa | 04:1/2"npt F | 04:1/2"npt F | P:panel | |
B:brass | B | F:500psi | J:0-75psi | P:psi/bar | 05:1/2"npt M | 05:1/2"npt M | R:safety valve | |
D | L:0-25psi | W:no | 06:3/4"npt F | 06:3/4"npt F | ||||
G | M:0-15psi | 13:1/2"OD | 13:1/2"OD | |||||
J | Q:30"Hg | 14:3/4"OD | 14:3/4"OD | |||||
M |

|
