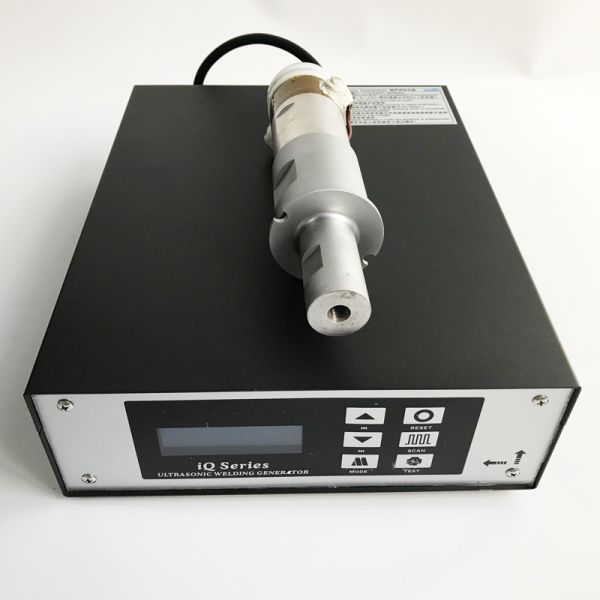

DC Ultrasonic Welding Equipment , Portable Ultrasonic Welder 1800W/15khz

1800W/15khz ultrasonic welding generator DC Welding Generator,Portable Welding Generator

Ultrasound detection:

In order to achieve good performance and maintain the performance of the machine, it is very important to adjust the resonance between generator and transducer system.

A: Before tuning, make sure that the welding head and the secondary rod must be locked. When tuning, the welding head should not touch other objects.

B: Turn on the power switch and the power indicator lights up.

C: Press the ultrasonic test switch and look at the load meter. (If the ammeter pointer is over 30% or more than 2A, the time to press the ultrasonic test switch is very short.) Adjust the tuning inductance and rotate left and right until the minimum position of the load meter is indicated, usually between 5% and 15% or 300 MA-900MA.

D: Because of the clamp position, the adjusting range of the tuning inductance is only 360 degrees. If the frequency of the welding head is far different from that of 20KHZ or 15KHZ, the cover should be opened and the fixed position should be removed to adjust.

1800W/15khz ultrasonic welding generator DC Welding Generator,Portable Welding Generator

Ours Ultrasonic Co.,Ltd

Ours Ultrasonic Co.,Ltd was established in 2009 .Registered capital of 3 million.Our Plant located at Shenzhen ,China More than 2,000 square meters . The company employs 100-150 people, including 10 technicians and 15 international and domestic sellers. Ultrasonic digital generator and PCBs . monthly production is 1000-3000 units, and ultrasonic cleaning and welding transducer 200,000pcs,ultrasonic immersible pack about monthly 20,000 sets.

At OURS ULTRASONIC ,We specially made an easy high power ultrasonic way ,We are manufacturer of Ultrasonic generator for cleaning and welding ,Ultrasonic transducer for cleaning,welding and powder vibration . Ultrasonic immersible transducer pack and cleaning machine ,Piezoelectric ceramic &ultrasonic equipment.

Our vision:High power ultrasonic is our main service purpose,the products what we offered are the best quality with best price,also excellent sale service for you always.

Meet in OURS ULTRASONIC:We are committed to the transmission of industrial ultrasonic to all parts of the world.OURS Ultrasound products all over the world.

Working at OURS ULTRASONIC:Professional ultrasonic technology service.Provide the best pre-sale ,Sales service,and after sales service.

Living in OURS ULTRASONIC:We are committed to expanding ultrasound products.Making OURS Ultrasonic Products being an important Part of Everyday Life.

We exported to Europe,America,Asia, Oceania,even Africa. such as Italy, Slovakia,Netherlands,France,Germany, Russia，Croatia, Slovenia, Switzerland, Portugal,USA, Canada,Mexico,Brazil, Ireland, Philippines,India,Malaysia, Indonesia,South Africa,etc.

We Trust that Ours Ultrasonic company will be come true the world wide brand name in near future and your support is most importance and positive for us,Let’s go for Ultrasonic Industry!
