| Categories | Hydraulic Power Equipment |
|---|---|
| Brand Name: | OEPOCH |
| Model Number: | OE-SJY0.5-11 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set / 30 days |
| Delivery Time: | 5-30 days upon order quantity |
| Packaging Details: | Wooden box packing /Negotiable |
| Product: | Electric hydraulic lifting platform |
| Operation type: | manual walking |
| Load weight: | 500 Kg |
| Color: | Red / Customized |
| Power: | AC 380V/220V / Customized |
| MAX platform height: | 11 m |
| Company Info. |
| oepoch industrial technology |
| View Contact Details |
| Product List |

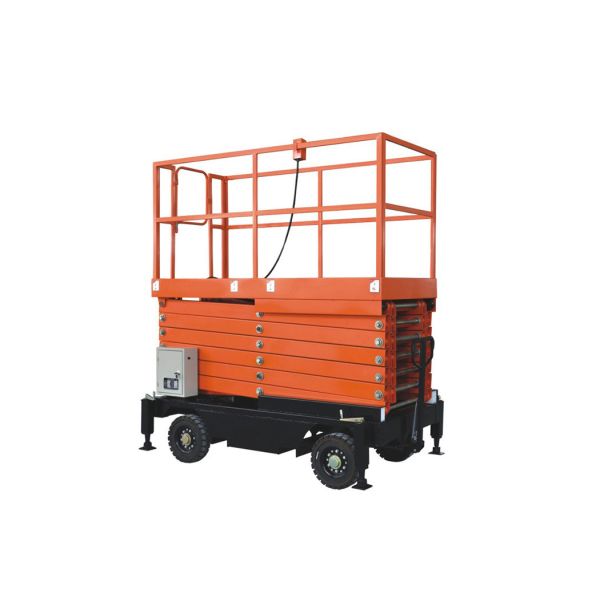

Electric hydraulic lifting platform scissor aerial work platform AC220V/380V manual walking
Product profile
The scissor hydraulic lifting platform adopts high-quality electric hydraulic station and hydraulic cylinder to ensure stable platform lifting and long service life. It is equipped with explosion-proof valve and explosion-proof oil pipe to prevent platform failure and ensure the safety of construction personnel.
Specifications
| Model | Unit | SJY0.5-6 | SJY0.5-7.5 | SJY0.5-9 | SJY0.5-11 |
| Max. Platform Height | mm | 6000 | 7500 | 9000 | 11000 |
| Min. Platform Height | mm | 1080 | 1200 | 1360 | 1480 |
| Platform Size | mm | 2200X1000X1100 | |||
| Lift Rated Capacity | kg | 500 | 500 | 500 | 500 |
| The Developed Dimension Of Legs | mm | 2700X2200 | 2700X2200 | 2700X2200 | 2700X2200 |
| Elevating Time | s | 77 | 77 | 77 | 77 |
| Electromotor Power | kw | 2.2 | 2.2 | 2.2 | 3 |
| Voltage | V | 220 | 220 | 220 | 380 |
| Overall Length | mm | 2270 | 2270 | 2270 | 2270 |
| Overall Width | mm | 1300 | 1300 | 1300 | 1300 |
| Overall Height | mm | 1180 | 1300 | 1460 | 1580 |
| Overall Weight | kg | 950 | 1350 | 1600 | 1800 |
