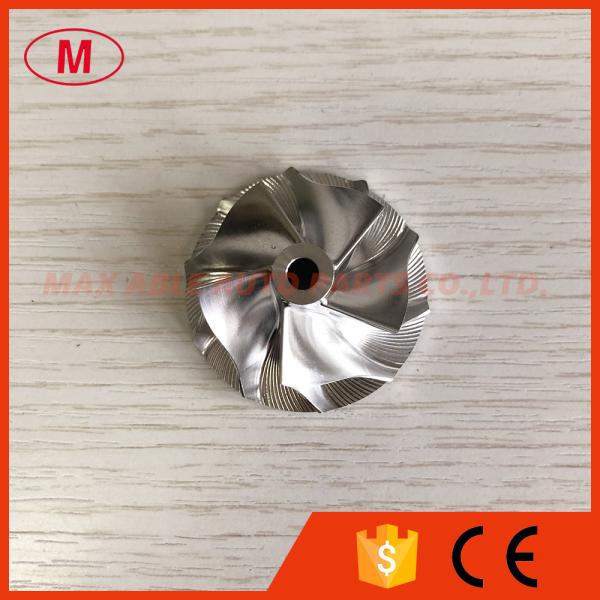

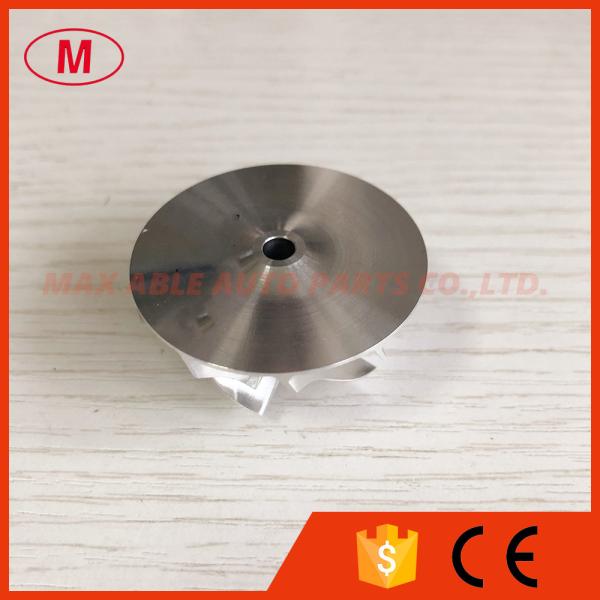

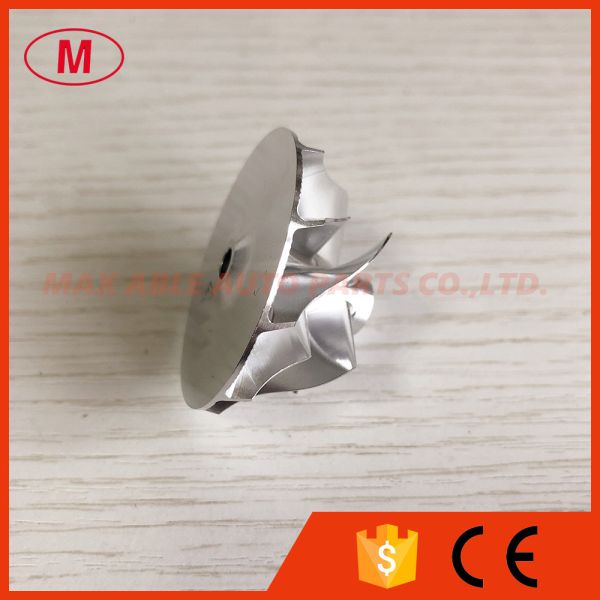

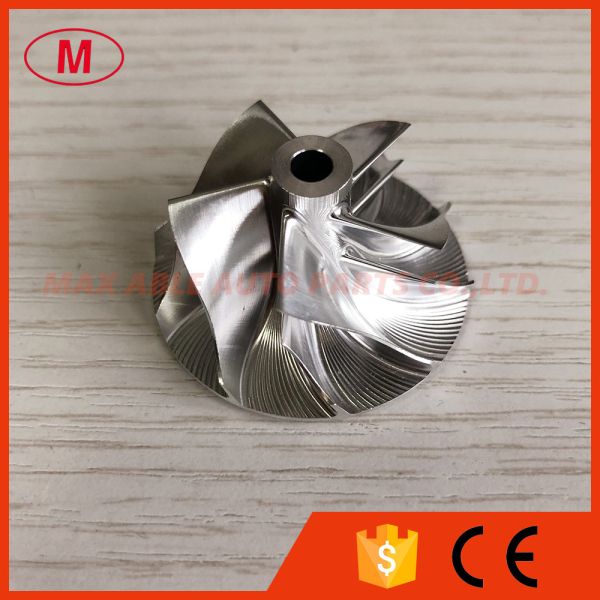

RHF3 31.00/40.00mm 5+5 blades Turbocharger milling/aluminum 2618/billet compressor wheel

1. RHF3 31.00/40.00mm 5+5 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for CK27, VJ2, VJ27, VL36, VL38, 55212916, 55222014, 55218934, 71724555, 71724556, 71724485, 55248311, 71794951 Fiat 500 Abarth Tjet motor, Romeo Mito, Fiat Grande Punto 1.4L, Fiat Bravo 1.4L, Lancia Delta III 1.4L

2.Size:

Nose diameter:8.90mm

Inducer :31.00mm

Exducer:40.00mm

Tip height:4.27mm

superback:1.06mm

Overall height:21.35mm

bore size:4.41mm

bore type:through

Trailing Angle:60

Cutback:3.0

SP height angle:1.20

Blade height:16.75mm

Splitter height:9.90mm

5+5 blades

forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

3.High quality and competitive price.

We have more size and we can produce as your requirement .

All the compressor wheel have been balanced

Skype: maxabledieselparts

Wechat/whatsapp:+ 86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
