Product Details
Company Profile

AISI 409L SUH409L Inox 1mm Thick Stainless Steel Sheet 1220mm 1250mm 1500mm Width

AISI 409L Stainless Steel Sheet Metal SUH409L Inox Sheet 409L Stainless Steel Composition

exhaust pipe used 409 409L SUH409L stainless steel sheet / plate / coil 3.0mm

Product Details:

Product name	exhaust pipe used 409 409L SUH409L stainless steel sheet / plate / coil 0.5-3.0mm
Grade	409L SUH409L
Standard	GB, JIS, ASTM, AISI
Surface	2D/2B
Thickness	0.5~10mm
Width	1000~2500mm
Usage	1.Widely used in the areas such as stainless steel fasteners,chains.kitchen and sanitarywares, furniture handles,handrail,electroplating and electrolyzing pendants, food, electro, petroleum, construction and decoration,etc.
	2.electronic products parts,medical appliances,springs,bus inside and outside packing and building, street lamp posts, etc.decoration materials and outdoor publicity billboard.used for the products which have the anti-stress corrosion requirement.electron products,table-wares, bolts, nuts, screen mesh, combustor and so on.
Condition of delivery	Austenite in solution, ferrite in anneal or in accordance with client's detailed requirement
MOQ	1 Metric ton
Price terms	CIF FOB CFR
Payment terms	L/C T/T
Supply ability	500 Metric tons per day
Delivery Detail	7-30 days,according to the quantity.
Packaging Detail	Full wrap by plastic packing-cloth

Mirror fini

Chemical Formula

Fe, <0.08% C, 10.5-11.75% Cr, <0.5% Ni, <1.0% Mn, <1.0% Si, <0.045% P, <0.03% S, 6x%C-0.75% Ti

Introduction

Grade 409 stainless steel is a Ferritic steel that offers good mechanical properties and high-temperature corrosion resistance. It is commonly considered as a chromium stainless steel, with applications in exhaust systems of automobiles and applications that demand weldability.

Grade 409 steels are also available in highly stabilized forms, such as grades S40930, S40920 and S40910. The stability of these grades is provided by the presence of niobium, titanium, or both, in the composition of steels.

Key Properties

The properties given below relate to annealed tubing of ASTM A268. The specified properties may not be similar to other products such as bar and coil.

Composition

The typical chemical compositional ranges of grade 409 stainless steels are given below:

Table 1 - Composition ranges of grade 409 stainless steels

Grade

409

min.

max.

0.08

1.00

0.045

10.5

11.75

0.5

6x C

0.75

Mechanical Properties

The table below provides the mechanical properties of grade 409 stainless steels:

Table 2 - Mechanical properties of grade 409 stainless steels

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
409	450	240	25	75	131

Physical Properties

The physical properties of annealed grade 409 stainless steels are tabulated below:

Table 3 - Physical properties of annealed grade 409 stainless steels

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
409	7800	200	11.0	11.7	12.4	25.8	27.5	460	600

Grade Specification Comparison

Table 4 provides approximate grade comparisons of 409 stainless steels:

Table 4 - Grade specifications for 409 grade stainless steel

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
409	S40900	409S19	-	1.4512	X6CrTi12	-	SUH 409

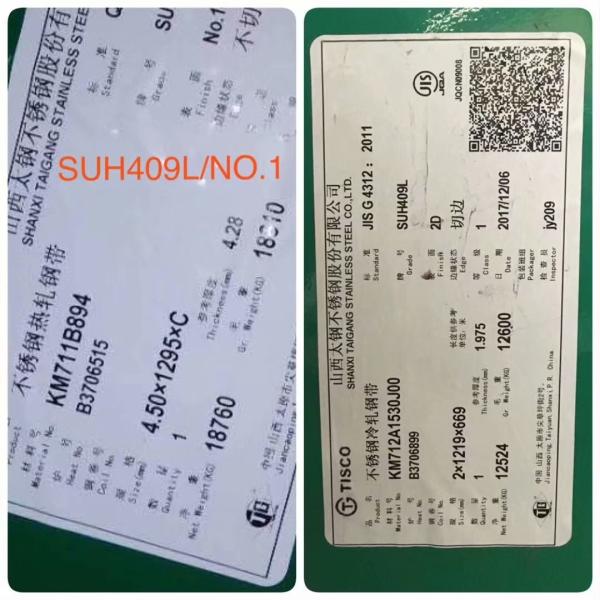

Products Photo

sh goldcolor coated stainless steel bla

Product Tags:


*From:	Your email address is incorrect!
*To:	JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Sheet
Brand Name:	TISCO ZPSS BAO STEEL
Model Number:	SUH 409L
Certification:	SGS ISO
Place of Origin:	China WUXI City
MOQ:	500KGS
Price:	1.485 USD/KG
Payment Terms:	L/C, T/T
Supply Ability:	500Tons
Delivery Time:	7 Days
Packaging Details:	Export Packing
Thickness:	0.5-3.0mm
Surface:	2D 2B
Width:	1220mm 1250mm 1500mm
Length:	2438mm 2500mm 3000mm 6000mm
